FKM 13060L H – Front Sweeper 130cm Width x 60cm Hydraulic

This is our Lighter mid size range of professional, heavy duty sweepers with hydraulic or Mechanical drive and manual angling. For tractors with front linkage and from loaders 50 – 70hp

  • Hydraulic Drive
  • Inboard hydraulic motor with self adjusting duplex chain to brush
  • Substantial steel folded frame construction
  • Brush diameter 60cm
  • 2 heavy duty support wheels 300x100cm with individual lever height adjustment
  • Angling left and right on 400mm bearing
  • Multi function hydraulic valve block with flow control valve, relief valve, overrun protection and auto collector opening.
  • Split side panel to allow easy access to change brush
  • Integrated side accessories brackets (left and right)
  • Paint RAL 2011 (Orange)
  • Prepared for optional KM Control system
  • Supplied with 2 section, 5 row Combi brush

Requires ABR Mounting Bracket

Kersten-FKM60L-sweeper-spec-sheet-August-2019-web

Ask a question
Add to Wishlist
Add to wishlist
Categories: , , ,
Description

Description

Front Mounted Sweepers FKM 60L series for compact loaders and tractors with front linkage 50‐70hp

This is our Lighter mid size range of professional, heavy duty sweepers with hydraulic or Mechanical drive and manual angling. They sport 20% less weight than the FKM 60L range, with CNC folded and welded, heavy gauge steel.

Specially designed hydraulic valve system with brush over-run protection and pressure relief valve prevents wear on the drive.

Unique, award winning, parallelogram collector box linkage system allows the sweeper and collector to follow the ground contours more accurately than any other sweeper, with large volume collector box.

An inboard variable speed hydraulic drive motor, with constant tension duplex drive chain allows greater power to the brush and negates chain slippage.

Our Ø 60cm, five row combi brush moves large, heavy debris with ease. The floating collector box comes with heavy duty guide wheels and lockable parking support.

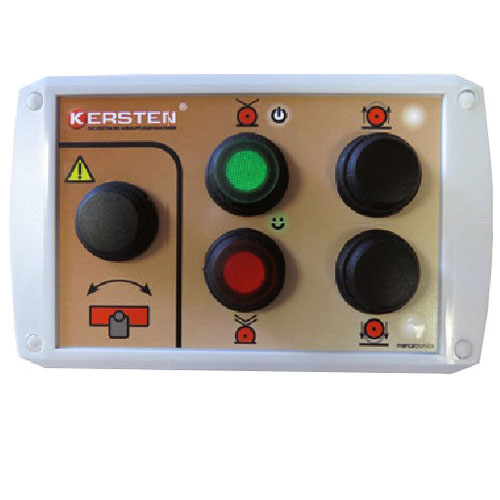

Sweeping height is adjusted by heavy duty gauge wheels using just one lever or you have the option of the award winning Kersten KM-Control which features automatic height control which can considerably increase brush life.

Suitable for front three point linkage mounting or front loader quick hitches. The sweeper comes with built in storage stands for easy manoeuvring when detached from the tractor..

Diameter   60cm
Width   130cm
Oil Flow    50l/m
Series     FKM 60L

Attachments

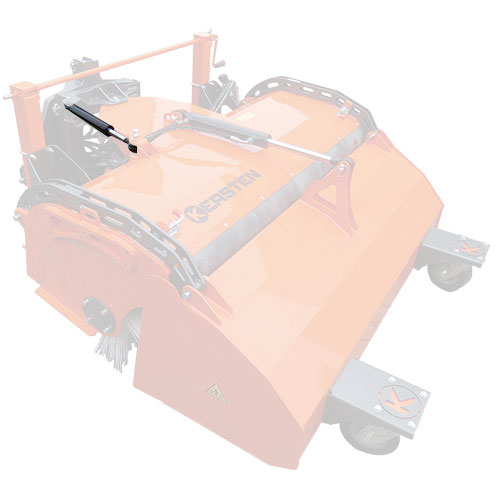

Hydraulic angling to left and right- Requires hydraulic service Dauble angling.

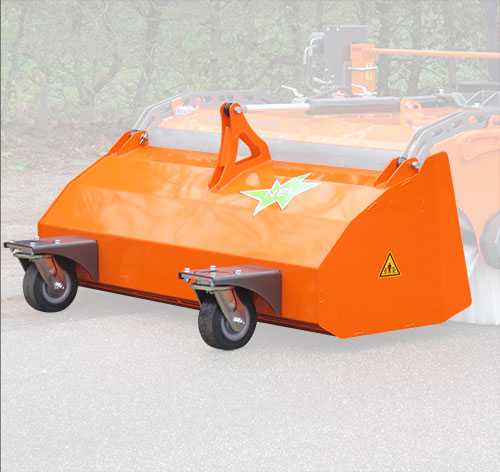

Collector Box series 130 cm c/w parallel linkage – Fully floating, parallel system with gauge wheels-250x85mm and hydraulic emptying

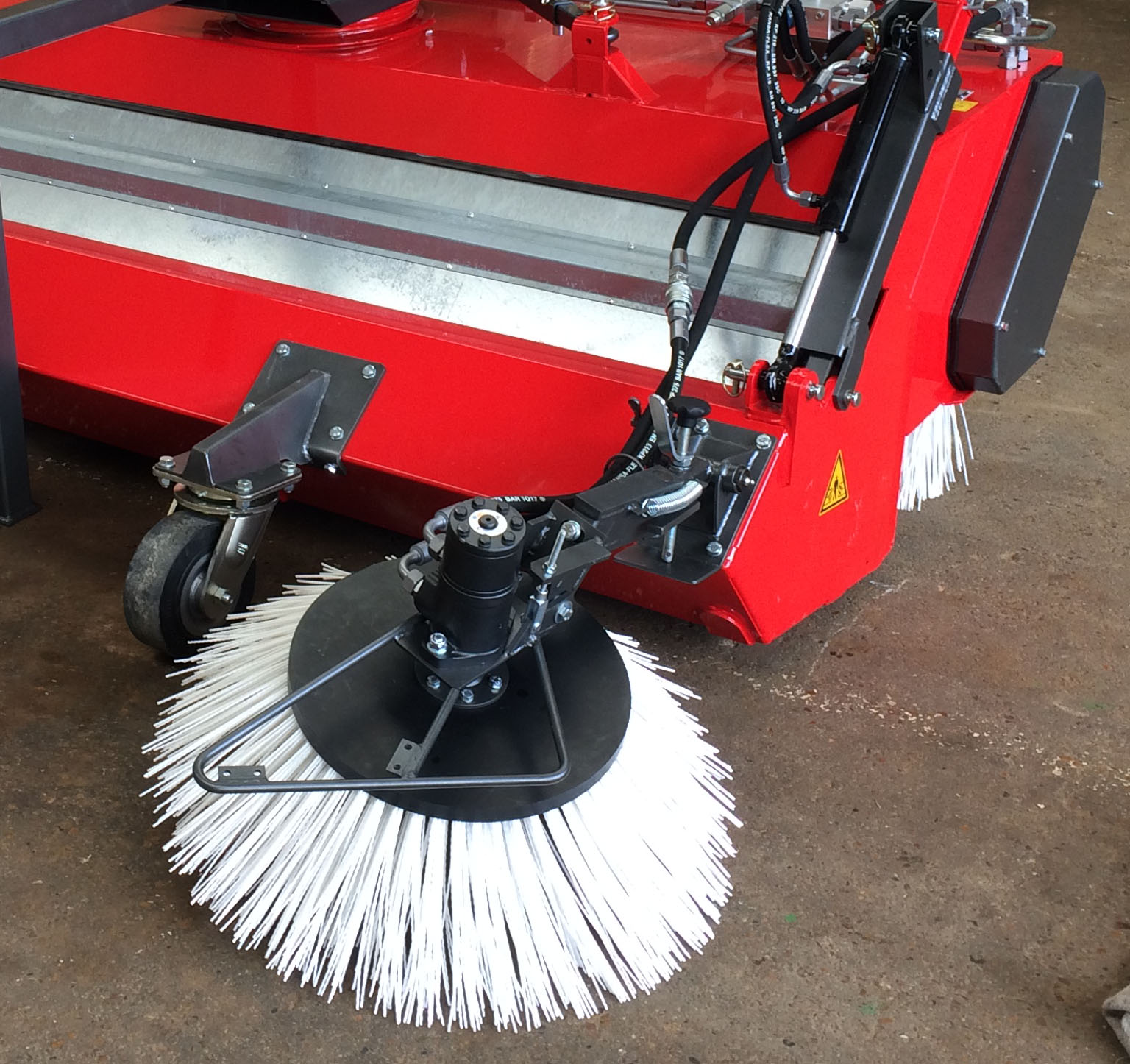

Right Hand 70cm Gulley Brush with variable speed, hydraulic drive, spring loaded collision protection, storage position and mounting plate





Right Hand 70cm Gulley Brush with variable speed, hydraulic drive, spring loaded collision protection, storage position and mounting plate

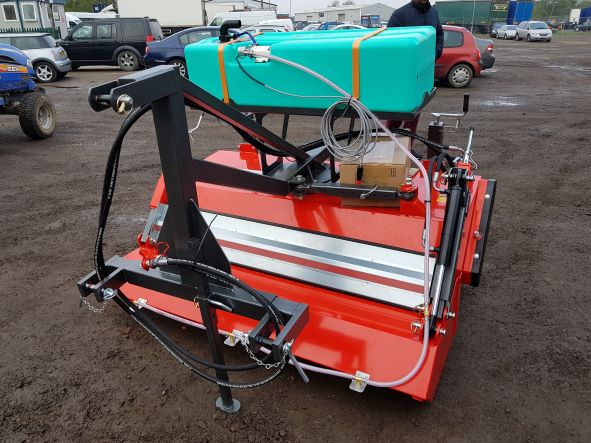

Water tank kit mounted on sweeper – 100litres c/w nozzle rail and 12v water pump

Water tank kit mounted on sweeper – 200litres c/w nozzle rail and 12v water pump





The KM 60 series sweepers are fully adjustable for height. This is normally achieved by a single lever which adjusts the height of both heavy duty gauge wheels simultaneously. This reduces the possibility of uneven brush wear. KM control take this one stage further.

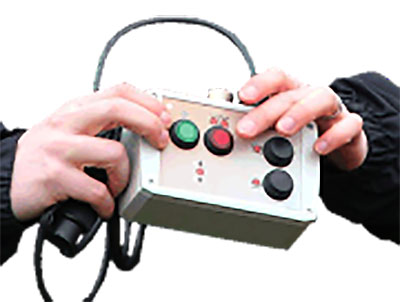

Electric remote control solenoid valves
