Description
The UBS Hydro 9 Kersten Two Wheel Tractor is an incredibly versatile, machine with mechanical PTO and much more power. Ideal for lengthy, heavier tasks in grass cutting, weed removal, path edging and artificial surfaces. For Contractors and Councils in parks and city center.
The machine features hydraulic drive to the wheels, with steering using wheel motors and unlike the K-Series it has a direct mechanical drive to the attachments. This delivers power to implements as efficiently as possible. This mechanical drive is necessary for power hungry tasks such as path edging, flail mowing and snow throwing. In the UBS series the chassis is also enhanced to give extra support for coping with the additional strain these jobs put on the machine.
The Kersten Quick-Attach70 system allows the wide range of implements to be changed in seconds. An adjustable stand allows you to do this with only one operator
Various tyre options may be added to suit the application.
Attachments for UBS Hydro 9
EFKM 10037 M-U 70 – Front Sweeper Machine 100cm
Kersten sweepers have been specifically designed to remove soil and heavy debris on hard surfaces. This is achieved by several very important design features that are not typically found on other sweepers.
The brush – We use 5 spiral rows of bristles on our roller brush. The gaps between the rows provide space for movement of larger volumes of heavy debris. The spiral pattern allows pressure to be applied across a narrow section of the brush rather than the full width. Less power is required to move heavy material at this point, than across the whole brush at once, so the brush can tackle much heavier material than other brushes.
The Sweeper has many other advantages that greatly increase its efficacy, such as ergonomic height adjustment – especially useful for artificial surfaces and compensating for brush wear.
Angling of the brush from left to right allows easy windrowing of material.
The brush can be fitted with a great range of accessories, such as the collector box, gully brush and debris guard; making it an extremely versatile machine.

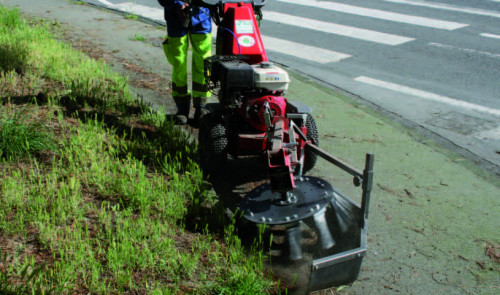

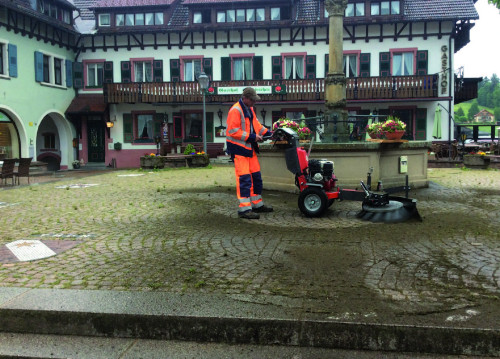

WKB 60 M-U 70 – WeedBrush Attachment For UBS 60cm
The WKB 60 WeedBrush attachment has been designed to quickly remove weeds and moss, along with the soil they grow in from hard surfaces like tarmac and block paving. We achieve this with several features not typically found on other Weedbrushes.
VersaBrush – The WeedBrush is fitted with VersaBrushes. These brush sections are composed of two wire types. Thick flat wires are used to cut the weeds and soil from the surface and removes the material; like using many tiny shovels. Thinner wire then sweeps the surface clean. The more soil that we can remove the longer the surface will remain free of weeds.
Angling – The WeedBrush can be angled in all directions for getting into cracks and crevices’. Using the brush on an angle allows it to penetrate the joints in surfaces such as block paving and cope with cambers.
Pressure – Brush height and pressure is controlled by an adjustable castor wheel placed close to the brush and a weight on top. This allows the pressure to be adjusted to suit the application, achieving a perfect combination of cleaning performance and brush life.
Stone guard – To reduce stone throwing, our WeedBrushes rotate at very low speeds of between 180 – 400 rpm. Because of the high torque, we are still able to achieve a great fi nish, but the lower speed gives much less energy to stones and other debris so they are not turned into dangerous projectiles. A protective guard also helps to keep material close to the brush, so the arisings are easy to clean up after WeedBrushing. The slow rotation speed has the added benefi t of creating less vibration.
TWB 75 K – K 2100
ThermHit 75 To fit Kersten K2100 Specification as above but to fit on the front of a Kersten The Hoaf Infra Plus System uses infrared radiation in combination with hot air. By exposing the unwanted vegetation to this process, the proteins in the weeds congeal and the moisture cells burst open at about 80°C. As a result the vegetation starts wilting and dies. The design allows great access into tight areas and paths, but the working width of the unit is large enough for covering sizeable areas in a short time. Because the product relies on heat, it can be used in the wet; allowing your weed killing to be less weather dependent. The hood design makes it easy to get right up to obstacles and the low hood allows access under park benches and picnic tables.
SCHN 125 FK-M-KU 70 – Snow Plough 125cm
SLDST 70 M-U 70 – Rotary Gritter/Spreader Mechanical PTO
The Kersten two-wheel tractors can be fitted with snow chains and winter attachments to transform your machine into the ultimate winter companion for paths and car parks. The hydraulic drive is extremely useful for slowing the wheel speed to avoid slipping on the icy surface when using the winter attachments. The salt spreader – A hydraulic drive salt spreader is available for the K-series machines, which can carry up to 70 litres of salt. The spreader is fitted with a mesh for breaking up large clumps of salt before they go through the machine. A special agitator has been designed to deal with damp salt, using a chain to break up the material. Guards allow the spread width to be adjusted to suit the application.
Snow Blower 80cm – SCHNFR80
KRB 250 KU 70 – Artificial Grass Folding Broom 250cm working width
Our uniquely designed Static Brushes are ideal for regular maintenance of artificial grass surfaces. Incorporating a 2.5m set of stiff brushes, which fold up to fit through single gates. The design puts pressure across the whole brush, to effectively re-distribute the surface infill and stand up the grass pile. During daily play, the infil of the surface will be moved around on players feet – creating troughs and mounds that make the surface uneven. The fibres in an artificial pitch give maximum support and the best performance when pointing upright and supported evenly by the sand or rubber crumb.

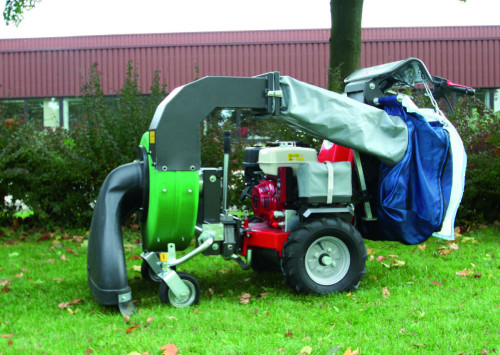

Leaf Blower LBV 5100 mechanical PTO for UBS Series
The Kersten LBV 5100 M with a noise level under 84dB is the ideal blower for clearing leaves around built up areas such as schools and holiday parks.
The LBV 5100 M is a professional blower attachment for the Kersten UBS two wheel tractor with PTO drive. The LBV has a light weight, dynamically balanced aluminum fan producing an air velocity of 230 km/h allowing even wet heavy material to be lifted from the surface and blown up to 8 meters. Very low noise is achieved with the use of inlet and outlet silencers and a one piece plastic fan housing. The resulting sound‐pressure at the ear of the operator is less than 84dB allowing the use of the LBV without the need of ear protection, allowing use in more built up areas.
Easy adjustment of the air direction is possible allowing fast results even in places with restricted maneuverability. Large casters allow the machine to follow contours with ease and cushion the impact on all parts of the blower and tractor extending its life.
The LBV range come with a fixed outlet chute as a standard feature.
ZRA 800 – 82cm Rotary Mower for 2 Wheel Tractors (Front)
The ZRA is a professional mower for the care and maintenance of lawns in parks and gardens. The ZRA a double height adjustment system that ensures a perfect, uniform cut. It features an oil bath gearbox with freewheel and safety key for efficient operation – greatly reducing down time from common wearing items like belts. The ZRA is fitted with swing tip blades that will protect the mower if logs or other impediments are struck during mowing. The high lift provides a massive air flow under the deck, which throws the grass a big distance allowing even dispersal of clippings.
Double cutterbar 140 cm from UBS Hydro 13
TSM 600 – 60cm Flail Mower for 2 Wheel Tractors (Front)
The flail mower RYDER TRACTOR can be applied to the front of a significant variety of low-power tractors (from 15 to 30 Hp), with a 3-point connection or with a triangular quick release. It can be equipped with sticks or blades depending on the requirement of use. Thanks to the high number of revolutions of the rotor, it is possible to neatly cut the grass and perform an excellent mulching action at the same time. RYDER TRACTOR is designed for use on lawns, in gardens and in urban areas.
In the version with blades, it is possible to insert a vertical blade (on request) to be able to aerate the soil.
Drum Mower – KRM 102 M-U 70
