Pedestrian Sweeper – SW 85 Pro Powered Pedestrian Sweeper

Kersten sweepers have been specifically designed to remove soil and heavy debris on hard surfaces. This is achieved by several very important design features that are not typically found on other sweepers.

The brush –

We use 5 spiral rows of bristles on our roller brush. The gaps between the rows provide space for movement of larger volumes of heavy debris. The spiral pattern allows pressure to be applied across a narrow section of the brush rather than the full width. Less power is required to move heavy material at this point, than across the whole brush at once, so the brush can tackle much heavier material than other brushes.

Height adjustment –

The pressure of the brush can be finely adjusted on the rear castors, which prevents unnecessary brush wear and allows the brush to maximise performance on a range of surfaces. The two castors also allow the brush to follow contours closely to keep as much contact with the ground as possible.

Angling –

The brushes can be angled to sweep forward, left or right. This allows material to be collected or wind-rowed

Our sweepers can be fitted with a range of accessories for making the job even easier;
Collector boxes –

A height adjustable container can be fitted to the sweeper in or der to collect material that has been swept. The box is sized so that it can be handled by one operator and is perfect for the collection of heavy debris such as soil, moss and sand.

Gully brush –

A side brush can be fitted for presenting gullies. The brush pulls material out from the edges into the path of the main brush, so it can be collected. This really makes an impact on a site and draws the eye to the crisp clean edges.

Brush guard –

A brush guard can be fitted to our sweepers instead of the collecting box. This prevents dust and debris being flicked into the air by the brush. Instead the material is contained close to the brush. This is extremely useful when trying to wind-row material.

Description

Description

Product Specifications

5.5 hp Honda petrol engine
Hydraulic transmission
Forward and reverse direction with differential 0-6km/h
Large diameter drive wheels (4.00-8 turf pattern)
Handlebar with 3 height adjustments
82cm Sweeper with 5 row combi brush
Adjustable height adjustment
Manual angling left and right

Optional collector box and Gulley Brush.
(This product is a standard bundle of our K820 Pro power unit with an EFKM 82cm sweeper fitted.)



Kersten – Front Sweeper Machine with Accessories:

Accessories for SW 85 Pro Powered Sweeper

Front Brush Guard:

Front brush guard for front sweeper.
For use when sweeping without a collector fitted to prevent “flying” material.

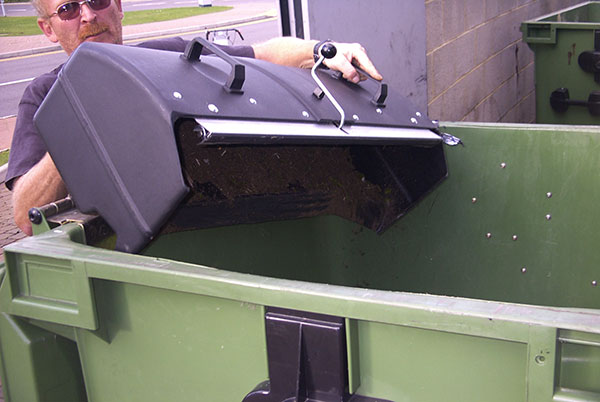

Collector Box:

Collector Box Very robust collector made from PE plastic supplied with brackets

Sport Separation Collector:

Sports Separation Collector for helping to clean debris from artificial surfaces.
Filters sand or rubber through a mesh, redistributing clean infill back to the surface.

Side Gulley Brush:

Side Gulley Brush 40cm – Hydraulic drive For helping to clean debris from kerb edges.

Product Applications

Sweeping on Hard Surfaces

When organic debris covers a hard surface it looks unsightly, but it also blocks drainage channels, which leads to surface water. Over time the material will decompose producing soil. Opportunistic weeds can use this soil as a platform to grow on the surface, which can cause damage over time. So it is really important to keep the surface swept and to remove the material.

Sweeping on Artificial Surfaces

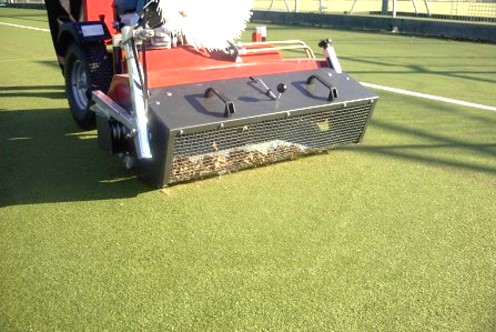

In addition to the normal problems we face maintaining hard surfaces; artificial surfaces have infill, which gets compacted and also migrates around the surface. This infill can be de-compacted with a sweeper allowing the surface to drain properly. The sweeper will also even out the distribution of infill and stand up the grass, making the surface much nicer to use.
