FKDR Linkage For Ride on Mowers

The FKDR-HYDR front linkage kit for ride-on mowers provides a hydraulic power supply can be used to power attachments on a Ride on Mower. The kit consists of a hydraulic pump driven from the ride-on mower engine. This is usually integrated in the FKDR mounting frame. An oil reservoir, a valve set to control the oil services is mounted on the chassis of the mower within reach of the machine operator. The front linkage has a quick attach A frame which remain permanently attached to the front of the mower. The attachments mount on to the front linkage. They may be lifted, lowered and angled from the seat.

FKDR-HYDR :

  • Hydraulic Angling
  • Hydraulically Lift and Lower
  • Hydraulic tank with control valves
  • 1/2 inch Hydraulic Couplings
  • 1 x Double acting valve
  • 1 x Double acting with float
  • 1 x Motor Drive with variable speed
  • Male FKDR Style A-frame to suit our range of attachments
  • Warranty – 2 year



Ask a question
Add to Wishlist
Add to wishlist
Categories: ,
Description

Description

The FKDR/HYD linkage is a self contained hydraulic system and linkage for your ride on mower. Hydraulics are supplied with the kit and are powered by the mower engine via a belt. The FKDR Kit is supplied with an integrated control panel to operate the lift/lower mechanism, angling and engage power to the implement. There are 2 levers. One lever controls the angling left and right. The other lever lifts and lowers the linkage. There is a float position on this lever, when engaged—power will be delivered to the implement. Hydraulic flow rate is also adjusted on this panel, enabling you to control the work rate of the implement you are using. The FKDR range sport the same robust construction techniques as our pedestrian equipment, with CNC folded and welded, heavy gauge steel.

These kits are normally fitted to machines of 15hp and over. They all use the Kersten Quick-Attach-FKDR implement hitching system which lets our attachments to be attached and removed in seconds without the use of tools. Attachments available include; Snow Plough, Salt spreader, Sweeper, Weedbrush, Wide brush, Leaf Blower.

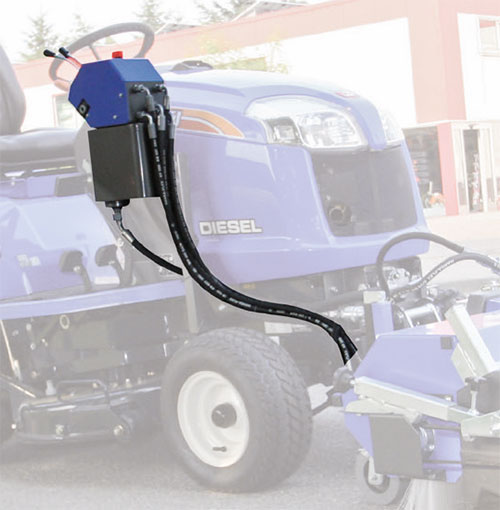

Front Linkage Kit for Iseki SXG 216 ride-on mowers

Front Linkage kit with hydraulic drive
• integrated hydraulic lift and lower
• hydraulic angling left and right
• hydraulic tank with control valve
(1 double acting valve +1 double acting with floating position and motor drive with variable speed control)
• supplied with male quick attachment “A” frame to suit Kersten FKDR sweepers, snow ploughs, WeedBrush, wide area brush, Hoaf weed burners and spreaders
• incl. mounting frame for Riding Mowers

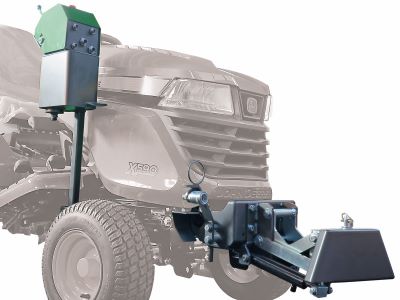

Front Linkage Kit for John Deere X500 series ride-on mowers
The FKDR is a front linkage for your Ride on Mower – This kit is for the John Deere X500 and comes complete with a hydraulic tank and pump. This turns your mower into a versatile multi-tool for lots of groundcare tasks.

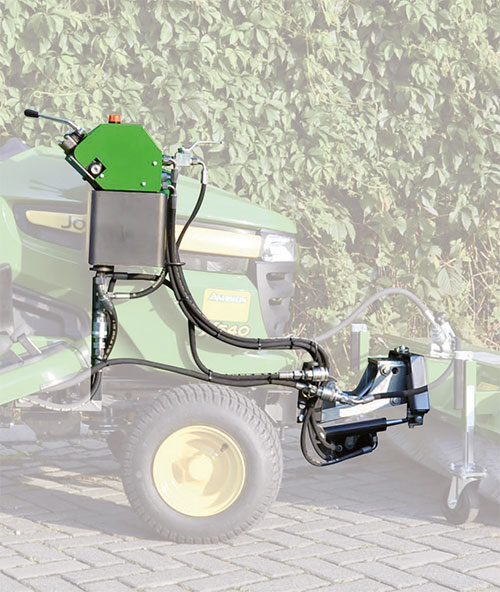

Front Linkage Kit for John Deere X300 series ride-on mowers
The FKDR is a front linkage for your Ride on Mower – This kit is for the John Deere X300 and comes complete with a hydraulic tank and pump. This turns your mower into a versatile multi-tool for lots of groundcare tasks. Suitable for X350 / X350R / X370 and X380

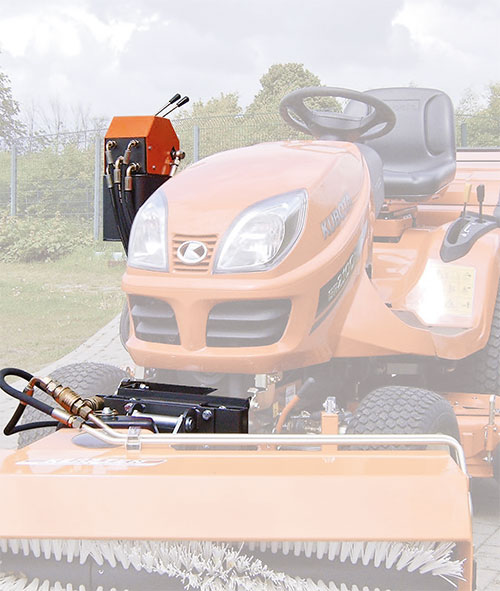

Front Linkage Kit for Kubota GR2100, GR2120, GR2120 S ride-on mowers
The FKDR is a front linkage for your Ride on Mower – This kit is for the Kubota GR 2100 Series and comes complete with a hydraulic tank and pump. This turns your mower into a versatile multi-tool for lots of groundcare tasks.
Front Linkage Kit for Kubota GR1600, GR1600 -11 ride-on mowers
The FKDR is a front linkage for your Ride on Mower – This kit is for the Kubota GR 1600 and comes complete with a hydraulic tank and pump. This turns your mower into a versatile multi-tool for lots of groundcare tasks.
