Rear Mounted Sweeper for Tractor 150cm PTO drive – HKM 15040 M

Sweeper 150cm Rear mounted sweeper for sub-compact tractors, compact tractors and small utility tractors with CAT1 three point linkage and a suitable rear 540rpm PTO drive to power the sweeper. Tractor power between 20-40hp.

  • Mechanical Drive – Includes PTO shaft
  • Includes garage stand
  • Folded steel frame construction
  • Brush diameter 40cm
  • 2 support wheels 200x40cm with individual lever height adjustment
  • Mechanical angling left and right
  • Supplied with 2 section, 5 row Combi brush
  • Supplied with Cat 1 3 point linkage mounting frame

Kersten-HKM40-Sweepers-Spec-Sheet-September-2019-web

Ask a question
Add to Wishlist
Add to wishlist
Categories: , ,
Description

Description

Professional Sweeper HKM 40 series. Light weight steel construction of the sweeper chassis is incredibly strong thanks to the unique design and use of advanced manufacturing techniques found in the Kersten factory. Today’s product is a result of many years of practical experience fitting sweepers to many power units.

Two widths of sweeper 125cm-150cm are available to accommodate the working width and weight capacity of the tractor it is fitted to.

Kersten HKM 15040 M Rear Mounted

Sweeper 150cm Rear mounted sweeper for sub-compact tractors, compact tractors and small utility tractors with CAT1 three point linkage and a suitable rear 540rpm PTO drive to power the sweeper. Tractor power between 20-40hp.

Diameter  40cm
Width  150cm
Oil Flow  15l/m
Series  HKM 40

Attachments

Hydraulic collector opening kit for HKM40 range of sweepers – HB-SSB-HFKM

Hydraulic collector opening kit for HKM 40 range of sweepers
Requires a suitable double acting  hydraulic service to operate.

Suitable for  HKM 12540 M or HKM 15040 M

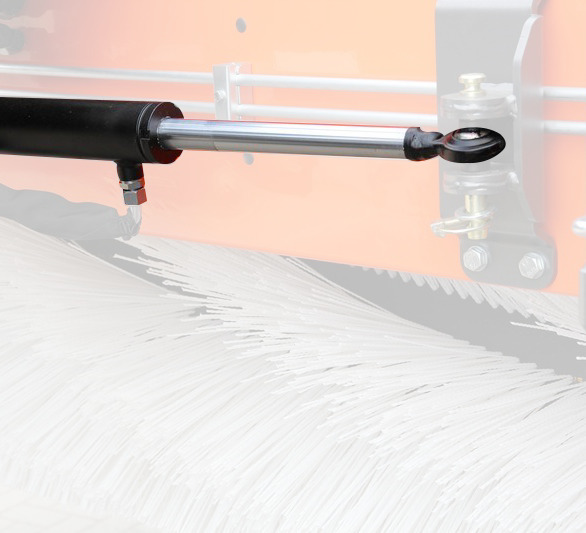

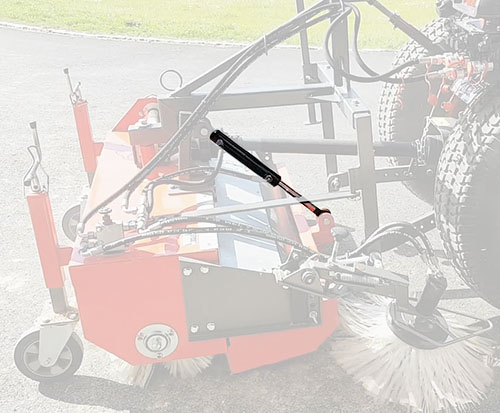

HSZ 180 UB – Hydraulic Angling kit









Gulley Brush to suit HKM 40 M (PTO) series sweeper.

50cm Side gulley brush for HKM 40 -M series sweepers with PTO drive.
This gulley brush is hydraulic drive and requires a hydraulic service to operate.

Includes variable brush speed control.

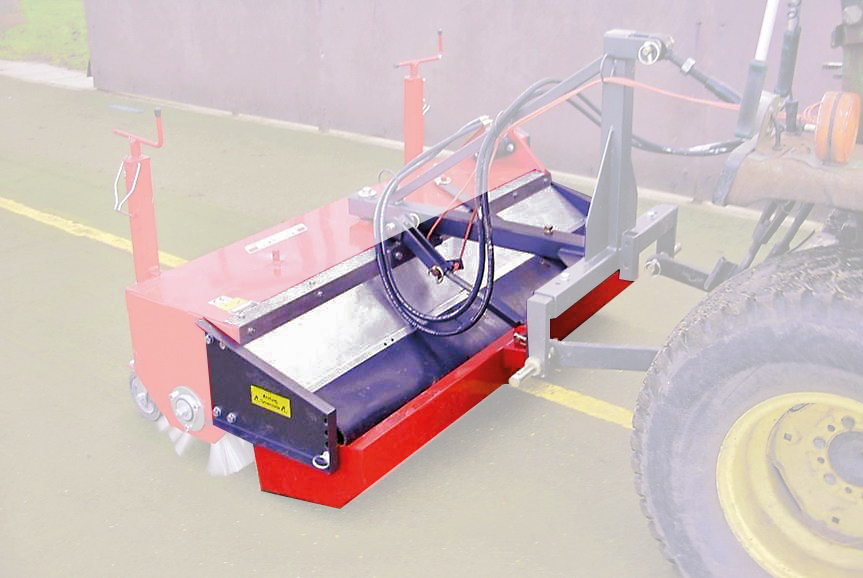

Collector Box 150cm for HKM 40 series sweepers, manual emptying by rope mechanism. Made from steel. Requires part SPA 150
