Uniforest Forestry Winches PREMIUM – SERIES M

The PREMIUM forestry winches are an indispensable machine when it comes to harvesting timber from your forest. They have been technologically improved to ensure easier operation and low-cost maintenance. In addition, they have been upgraded with unique design combining a powerful and stable structure with diagonal lines.

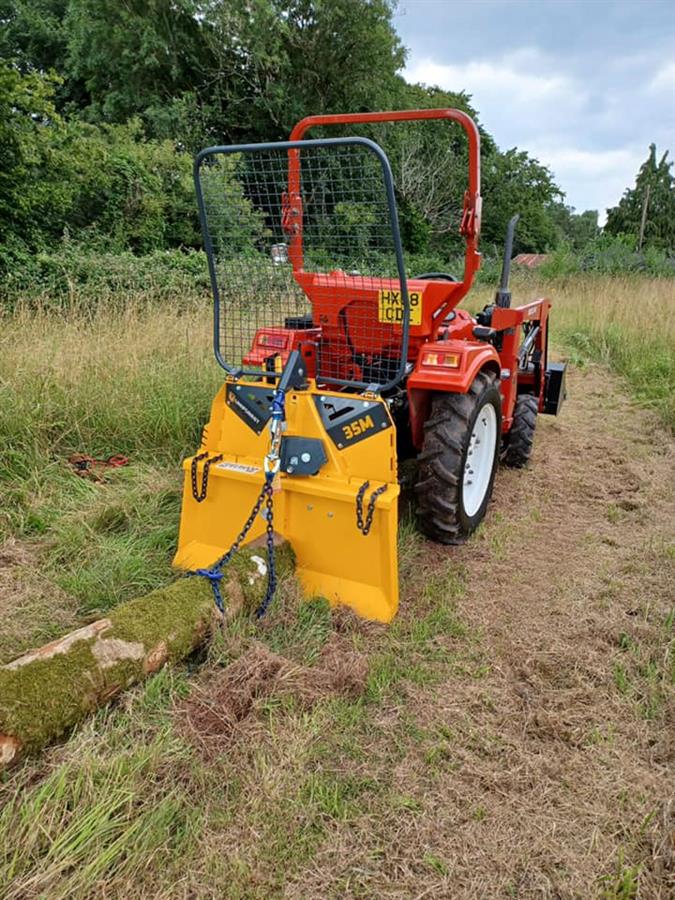

The mechanical forestry winches of the M series have a pulling force from 3.5t to 8.5t.

The mechanical forestry winch 85 MR is the largest in its series with a pulling force of 8.5t and for tractors with min. 68 HP.

Mechanical forestry winch 85 MR with puling force 8.5t has large storage spaces on the front of the winch (butt plate) that are patented. The winch has integrated reduction gear, which allows the same pulling force to be achieved with less tractor power and, consequently, also reduces its consumption. The window guard is foldable, which makes transport easier. A winch recognizable design with a robust construction and a compact butt plate prevents wear and makes it easy to work.

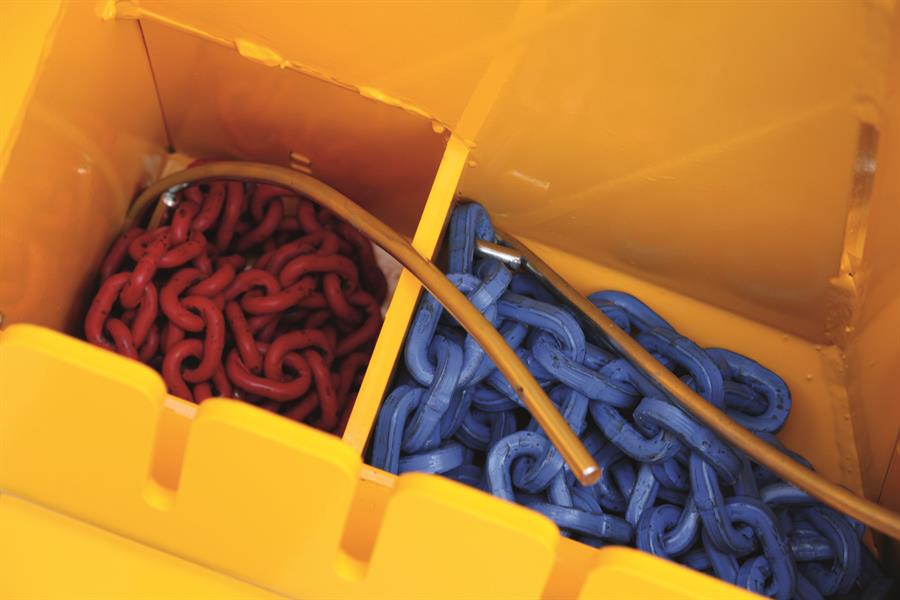

  • Plenty of room on the front side of the butt plate
  • Foldable window guard
  • Robust construction
  • Superior design with ergonomic shape
Description

Description

Technical Specifications:
35M 45M 45MR 55M 55MR 85MR
Pulling force kN 35 45 45 55 55 85
Wire rope medium speed m/s 0.9 0.9 0.6 0.9 0.6 0.6
Drum capacity (length/diameter) mm/mm 115/80 135/9 135/9 110/10 110/10 –
90/9 110/10 110/10 90/11 90/11 120/12
75/10 90/11 90/11 75/12 75/12 100/131
Std 70/9 70/10 70/10 70/11 90/13 100/12
Recommended tractor power kW 11-33 37-50 37/50 40-55 40-55 min. 50
Recommended tractor power HP 16-45 50-68 50-68 54-75 54-75 min. 68
PTO shaft revolutions rpm 540 540 540 540 540 540
Dimensions
Std Width mm 1200 1490 1490 1590 1590 1800
Depth mm 450 490 490 490 490 780
Height excluding guard mm 1160 1400 1400 1480 1480 1800
Height including guard mm 2000 2170 2170 2300 2300 2300
Weight without wire rope kg 232 361 371 375 385 571
Trailer tow hitch
Optional
Standard
Standard
Standard
Standard
Standard
Lower pulley
Standard
Standard
Standard
Standard
Standard
Standard
Chainsaw holder
Standard
Standard
Standard
Standard
Standard
Standard
Pickaxe holder
Standard
Standard
Standard
Standard
Standard
Standard
Foldable window guard
Standard
Standard
Standard
Standard
Standard
Standard

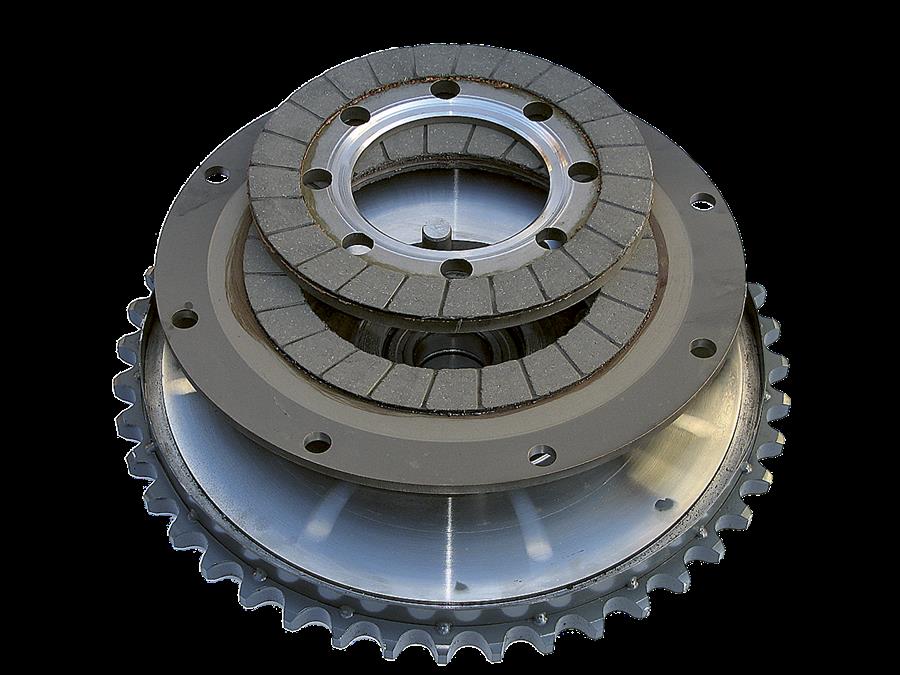

Multi-plate clutch
Standard
Standard
Standard
Standard
Standard
Standard
Control Mech.-Rope Mech.-Rope Mech.-Rope Mech.-Rope Mech.-Rope Mech.-Rope
Linkage cat. I, II I, II I, II I, II I,II II,III

Standard,

Optional

Scroll left<>right for more detail

Key Features:

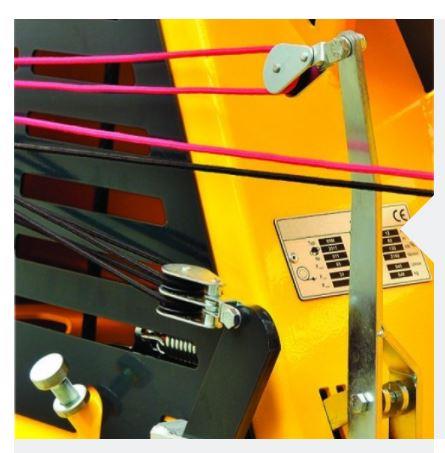

  SHORTENED HAND CORD

The hand cord for engaging the pulling mechanism is only 60 cm long.

Less force is required to pull the cord for disengaging the brake or achieving full pulling force.

LUBRICATION-FREE BEARINGS

Lubrication free sealed ball bearings (FAG) ensure uninterrupted unwinding and winding of the wire rope; no lubrication is required.

  ROBUST HANDBRAKE

Easy & precise adjustment of the band brake.

  LONG-LASTING BUTT PLATE

Robust butt plate is reinforced with wear-resistant flat steel.
