KM 13050 M – Front Mounted Sweeper for Tractor and Mower 130cm Mechanical PTO Drive

KM 13050 M – Front Mounted Sweeper for Tractor and Mower 130cm Mechanical PTO Drive – Ø 50cm

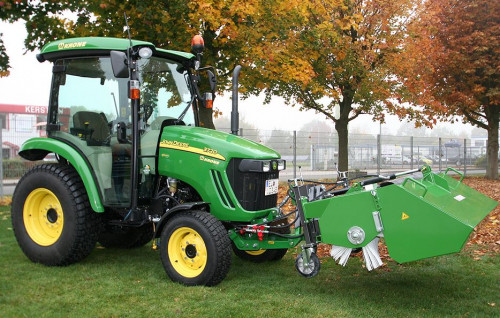

The KM 50 Series is a lightweight and compact sweeper for front mounting to front mowers, compact tractors with front linkage, and high spec utility vehicles 25 – 50hp. Available with front brush guard, collector box, dust suppression and gully brush.

Front Mounted Sweeper for Tractors
130cm Working width
Diameter 50 cm
Mechanical Drive PTO
Includes garage stands
Folded steel frame construction
Brush diameter 50cm
2 support wheels 200x50cm with individual lever height adjustment
Hydraulic angling left and right – requires 1 double acting service
Supplied with 2 section, 5 row Combi brush

Mounting Bracket – ABR 50 is Required

Kersten-KM_50-sweeper-spec-sheet-July2019-web

Description

Front Mounted Sweeper 130cm Mechanical Drive – Ø 50cm. When choosing the correct sweeper for your application you should consider the width of the power unit, oil flow or PTO horsepower available to power the sweeper and capacity to lift the sweeper, with a full collector if required.

This is our smaller mid size range of professional, heavy duty sweepers with hydraulic or Mechanical drive. Hydraulic angling to angle the sweeper left and right from the comfort of the seat. The hydraulic angling cylinder is supplied with hoses and 1/2” quick release couplings.

They sport even more robust construction techniques than our KM 45 sweepers, with CNC folded and welded, heavy gauge steel. An inboard variable speed hydraulic drive motor, with constant tension duplex drive chain allows greater power to the brush and negates chain slippage.

The pendulum suspension system protects the sweeper and carrier from damage over rough ground. Our Ø 50cm, five row combi brush moves large, heavy debris with ease. Sweeping height is adjusted by heavy duty gauge wheels—each wheel is adjusted individually for precise positioning of the brush. Suitable for front three point linkage, tool carrier or A-frame mounting.

Diameter 50cm

Width 130cm

Drive PTO

Series KM50

Attachments

HSZ 180 UB – Hydraulic Angling kit

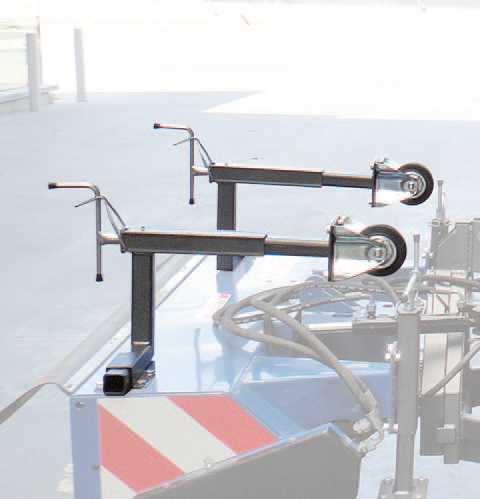

Garage Jack Stands. To enable easy movement when the sweeper is detached from tractor.

Includes castor wheels

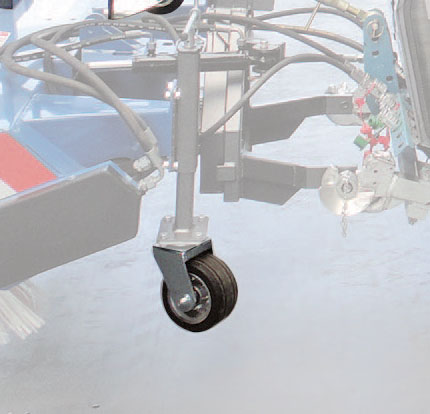

Heavy duty height adjustment wheels in lieu of standard. 180 x 80

Electric remote control solenoid valves – Cab mounted control

only 1 double acting service required with detent
provides 2 hydraulic functions from one service
Functions: angling and sweeper drive
Collector Box 130cm for KM 50 Series Sweepers, Includes hydraulic emptying. Made from steel
Side Gulley Brush 50cm for KM 50 Mechanical PTO series sweepers only. This gulley brush includes an hydraulic pump and oil reservoir driven from the input gearbox. Gulley Brush with variable speed, hydraulic drive, spring loaded collision protection, storage position and keystone adjustment.
