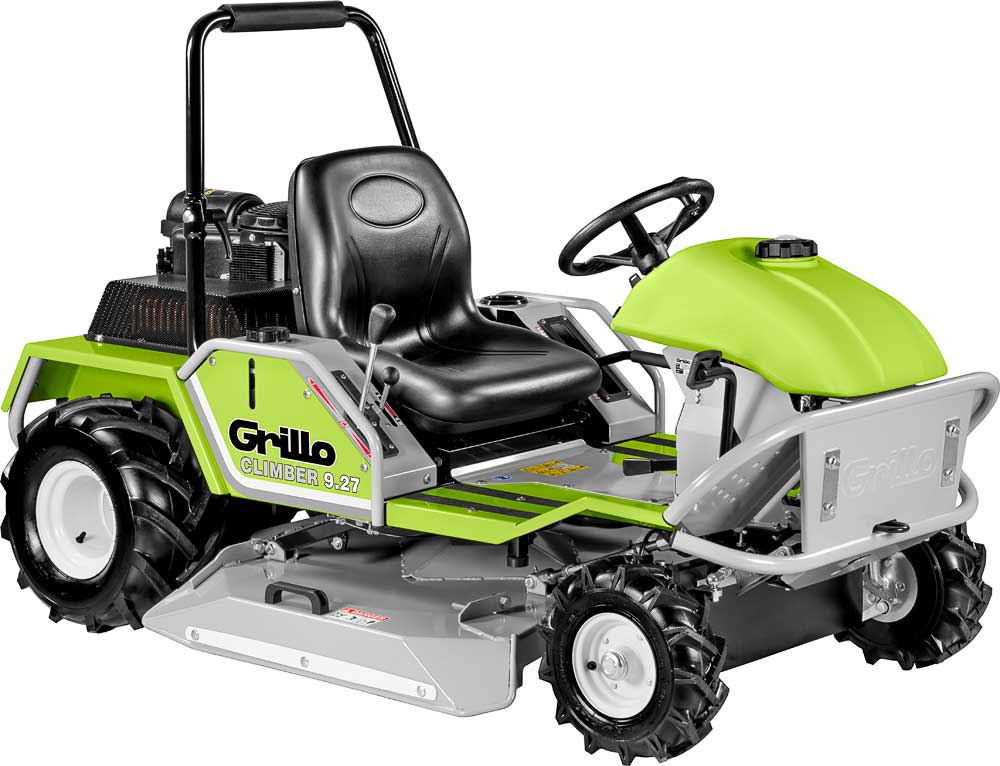

Grillo Climber 9.27 Garden Machine

	Engine	Briggs & Stratton Series 8270 Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
	Fuel tank capacity	13 L.
	Gearbox	hydrostatic transmission with reduction gear unit and diff
	Clutch	Clutch: electromagnetic for PTO with blade brake
	Cutter deck	Side/rear discharge
	Cutting configuration	rotating with 1 blade with swinging tips and double cutting edge
	Cutting width	98 cm
	Cutting height	from 3,5 cm to 13,5 cm with continuous adjustment
	Differential locking	Differential locking device by pedal action
	Front tyres	Tractor 3,50-6 puncture-proof treated
	Rear tyres	18×9.50-8 Tractor
	Speed	Continuously variable from 0 to 11,5 km/h, reverse gear from 0 to 7,5 km/h
	Inner turning radius	80 cm
	Seat	adjustable super-comfort seat with foldable roll-bar.
	Service brake	On the front wheels brakes are pedal-operated
	Parking brake	On the rear wheels brakes are lever-operated
	Mowing capacity per hour (indicative)	8000 m^2/h
	Standard features	Dampened seat support
	Length	1960 mm
	Width	1080 mm
	Height	950 mm (with folded roll-bar)
	Distance between axles	1330 mm
	Weight	358 kg

Description

to be applied on Climber 10 AWD 22 – Climber 7.13 – Climber 7.15 – Climber 7.16 – Climber 7.18 – Climber 8.22 – Climber 9.27 – MD 13

item no.: 9A4511

weight: 9 kg

to be applied on Climber 10 AWD 27 – Climber 9.27

item no.: 944211

weight: 2 kg

to be applied on Climber 8.22 – Climber 9.27

item no.: 9M4322

weight: 2 kg

To increase the wheels grip on snow and ice, easy to mount and dismount.
