Description
WORK IN ANY DIRECTION ON SLOPES OF UP TO 60°
The low center of gravity, extendable undercarriage and high profile tracks achieve an unrivalled stability on uneven and steep terrain up to 60° grade.
GREATER STABILITY
The variable width undercarriage achieves an unrivalled stability on uneven and steep terrain and can be adjusted directly from the remote control.
GREATER FLEXIBILITY
The front plate lateral movement enables work beyond the machine’s footprint of up to 800 mm.
GREATER STABILITY AND TRACKS ALWAYS IN PLACE
Our undercarriage with its patented track guard system dramatically increases stability and reliability.
INCREASED FOOTPRINT
The LV 300 PRO has the ability to work even on muddy or loose soil.
TIME SAVINGS
The rapid connect/disconnect system allows for time savings for changing the attachments. A tool-less method to change attachments for the necessary job.
INTUITIVE DRIVING
The easy and intuitive driving with a single joystick ensures that you always have one hand free to manage other machine movements.
The 2 additional auxiliary hydraulic lines with double-acting on/off movement ensures that even attachments with multiple functions can be controlled directly from the remote control.
CONTINUOUS OPERATIONS
The reversible fan and oversized radiator allow continous work in dusty and high temperature environments.
ALWAYS READY FOR ACTION
The Smart Battery System (SBS) is an intergrated sealed compartment that houses a battery charger for the remote control. The spare battery recharges automatically while the machine is working.
MAXIMUM STRENGTH
The high-strength steel frame makes our Green Climbers the lightest in its class.
MAXIMISED PROTECTION
Powder coating gives the bodywork protection against corrosion.
SPECS
Metric Imperial
Features
Lateral translation 400 mm (hydraulic) + 400 mm (mechanical)
Undercarriage Extendable (patented)
Special motor lubrication system Yes (patented)
Rapid hydraulic plate attach Yes
Undercarriage for elevate slopes Yes (patented)
Track anti-derailment system Yes (patented)
MDB prefiltered air turbine Yes
Towing hitch Yes
Maximum slope 60° in all directions
Hydraulics
Transmission Hydrostatic Proportional
Principal accessory pump (piston closed loop) 42 L/min @210 bar
Service pump 10 L/min @ 180 bar
Accessory Hydraulic Outputs 2 auxiliary lines on/off
Hydraulic oil tank capacity 17 L

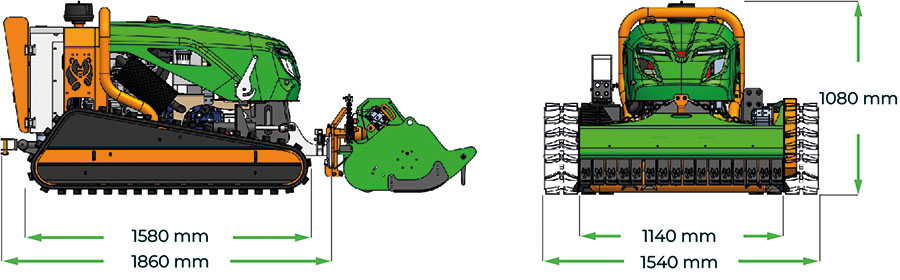

Dimensions
Length 1860 mm
Width 1140 mm (Closed) 1540 mm (Opened)
Height 1080 mm
Weight 950 kg
Engine
Brand and model YANMAR 3TNV82A / 3TNV80F
Fuel type Diesel
Fuel tank capacity 20 L
Power 19 kW
Torque 87 Nm @ 1680 rpm / 64 Nm @ 1900 rpm
Max speed 9 km/h
Emission norms Stage V – EPA Tier 4 Final
Cooling Liquid with reversible fan and oversized radiator
Remote control
Scope of work calibrated to 100 m for visibility
Drive with one joystick (completely proportional) Yes
Battery charger compartment onboard
