Description
ACTIO™
AC Full Chassis with Oscillation – cast iron full chassis hosting the tractor’s transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil’s sinuosity ensuring constant traction and grip.
RGS™
RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
Steering wheels
The short wheelbase and tight steering radius make the tractor extremely agile in crop rows. To further reduce the turning radius, the steering* brakes can be utilized, while accentuating the steering effect obtained thanks to the double-acting constant velocity joints.
*optional
ESC – Electronic Speed Control
Electronic and automatic speed and engine rev control device. It memorizes and modulates the tractor speed at the operator’s discretion.
EXG Extended Warranty
As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.
Vertical tie-rod and hydraulic third point
Optimizes the positioning and inclination of the equipment.
Optional

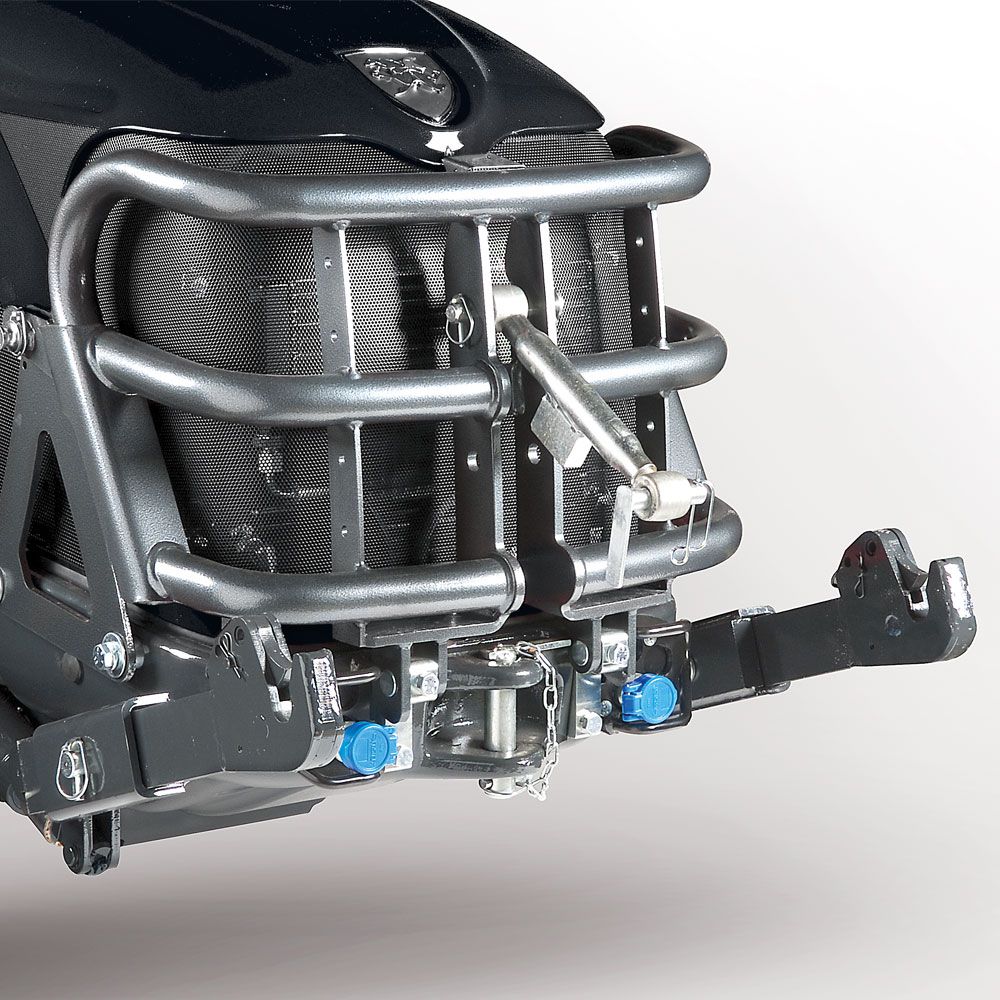

Front lift
Available on demand the front lifting system for the use frontal implements.
Optional
Air conditioner
The soundproof cab offers also an automatically controlled air conditioning system.
Optional
StarLight Cab
CLOSED CAB
StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or under foliage. Starlight’s compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver’s station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rear view mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.

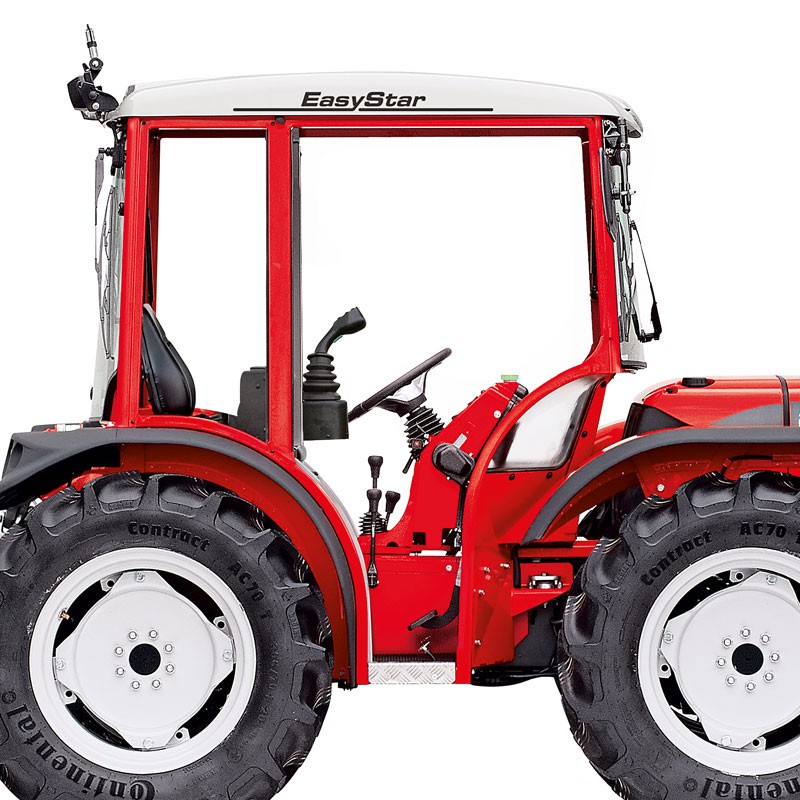

EasyStar Cab
MULTI-PURPOSE MODULAR FRAME
EasyStar 6-post cab is a must-have device to protect the operator from sun, bad weather and dust.
Starting from the standard configuration (6-post frame and sunroof), one can add front and rear windscreens and the doors set.
Covered by Antonio Carraro warranty, EasyStar is safer than many untested, uncertified products at the same cost.
In addition to its unmatched quality, its design is pleasant and perfectly suitable to the chosen tractor.
Compact reverse drive tractor
ENGINES AND DIMENSIONS
The transition to Stage 3B emissions standards has led to an increase in dimensions for everyone. Everyone, that is, except for Antonio Carraro, who have managed to maintain the compact dimensions of their engine compartments with all the new propulsion units, to the benefit of visibility and driver comfort.
With the new engines equipped with DPF filters, Antonio Carraro tractors achieve improvements in performance while taking more care of the environment.
