Description
ACTIO™
AC Full Chassis with Oscillation – cast iron full chassis hosting the tractor’s transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil’s sinuosity ensuring constant traction and grip.
RGS™

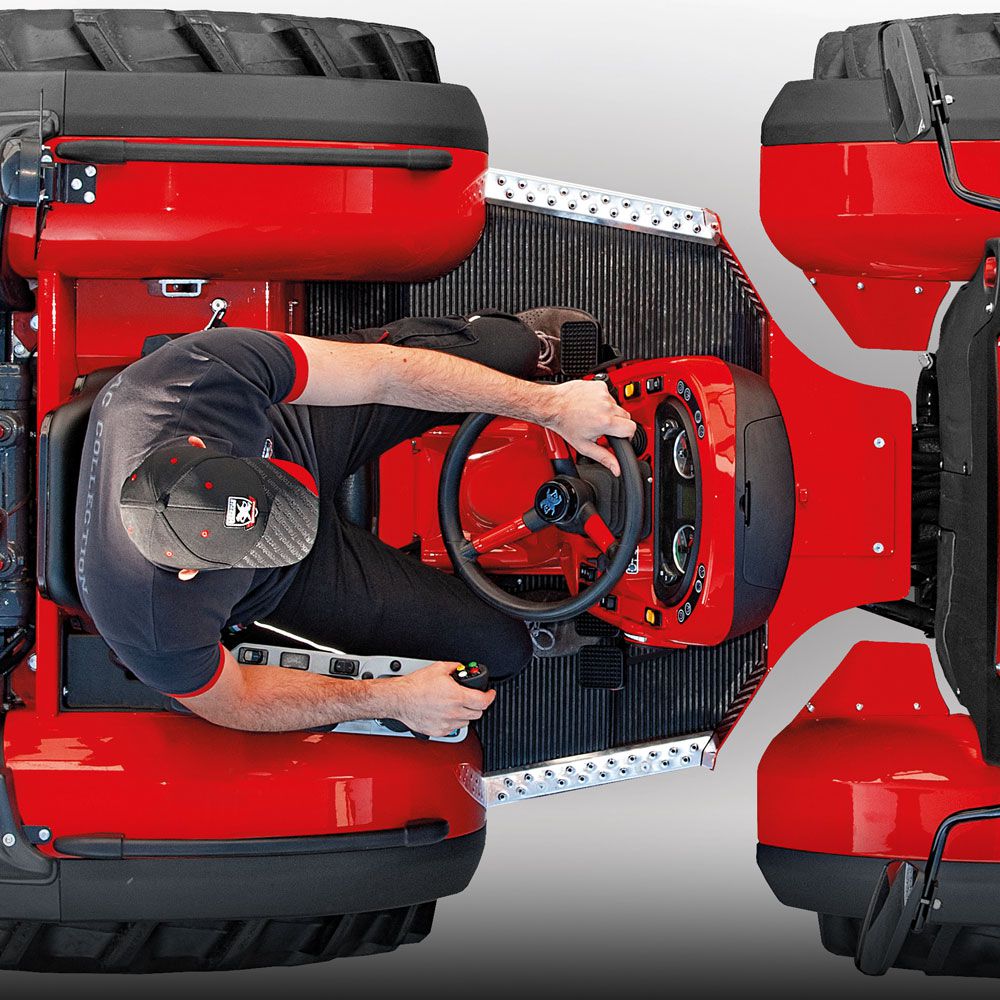

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
Articulated chassis
The wheelbase, the limited external width and the articulated frame make the tractor very agile between crop rows. The smooth and sensitive hydro guide steering wheel assures precise manoeuvring on steep slopes, in crossways movements, in bottlenecks, among crop rows and in car parks.
Comfort
Thanks to the ACTIO™ Chassis, the driving position coincides with the centre of oscillation of the tractor. Sideways jerking and stress are very limited and operator fatigue is reduced, even after many hours. The on-board instrumentation is elegant, functional and intuitive: backlit anti-reflection screen for night time use; “on-off” information system; digital tachometer and PTO rev counter; and electro-hydraulic pushbutton controls.
Transmission – 16+16
Synchronized transmission gearbox with 32 speeds, 16 fwd +16 rev, and synchronized shuttle reverser; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser and PTO selector; Electrohydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch.

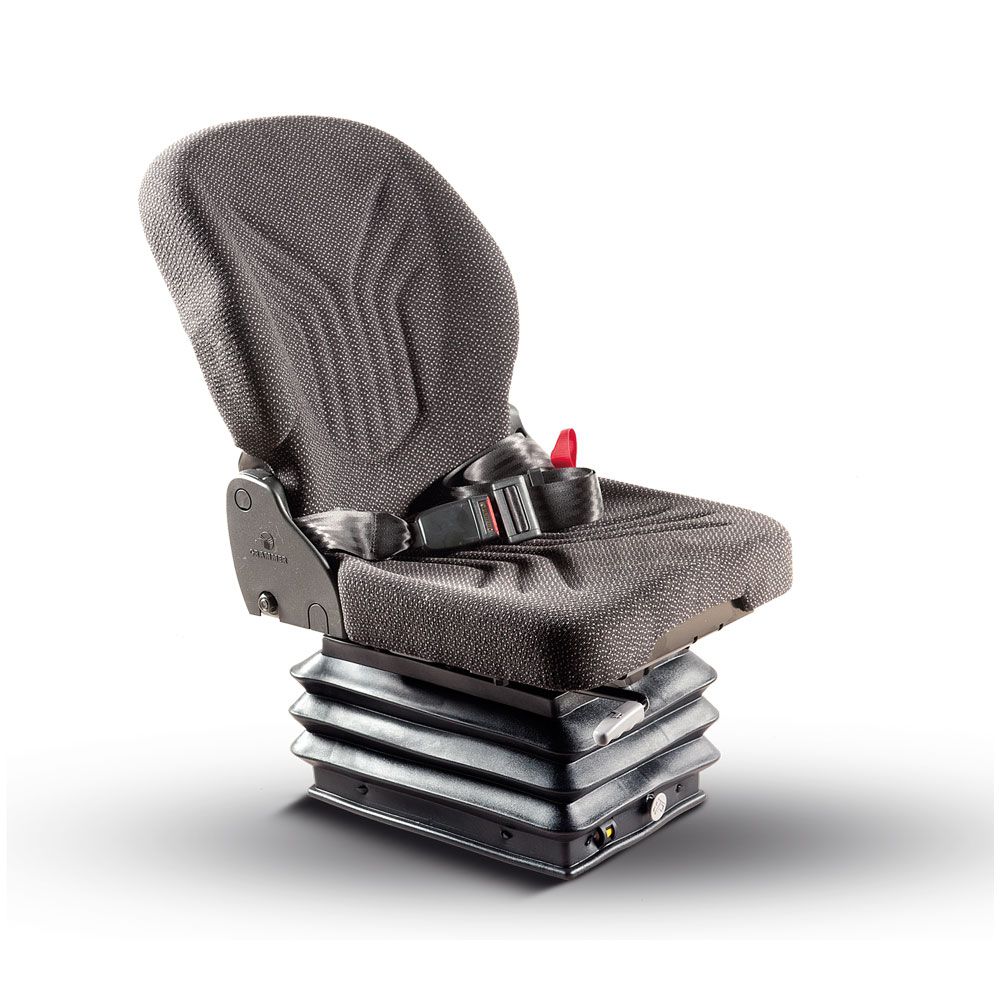

GRAMMER seat
Air suspension with load display – reclining backrest – lumbar support.
Optional
Pneumatic seat
Pneumatic suspension seat with height regulation and automatic driver-weight adjustment (from 50 kg ti 130 kg).
Optional
EXG Extended Warranty
As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.

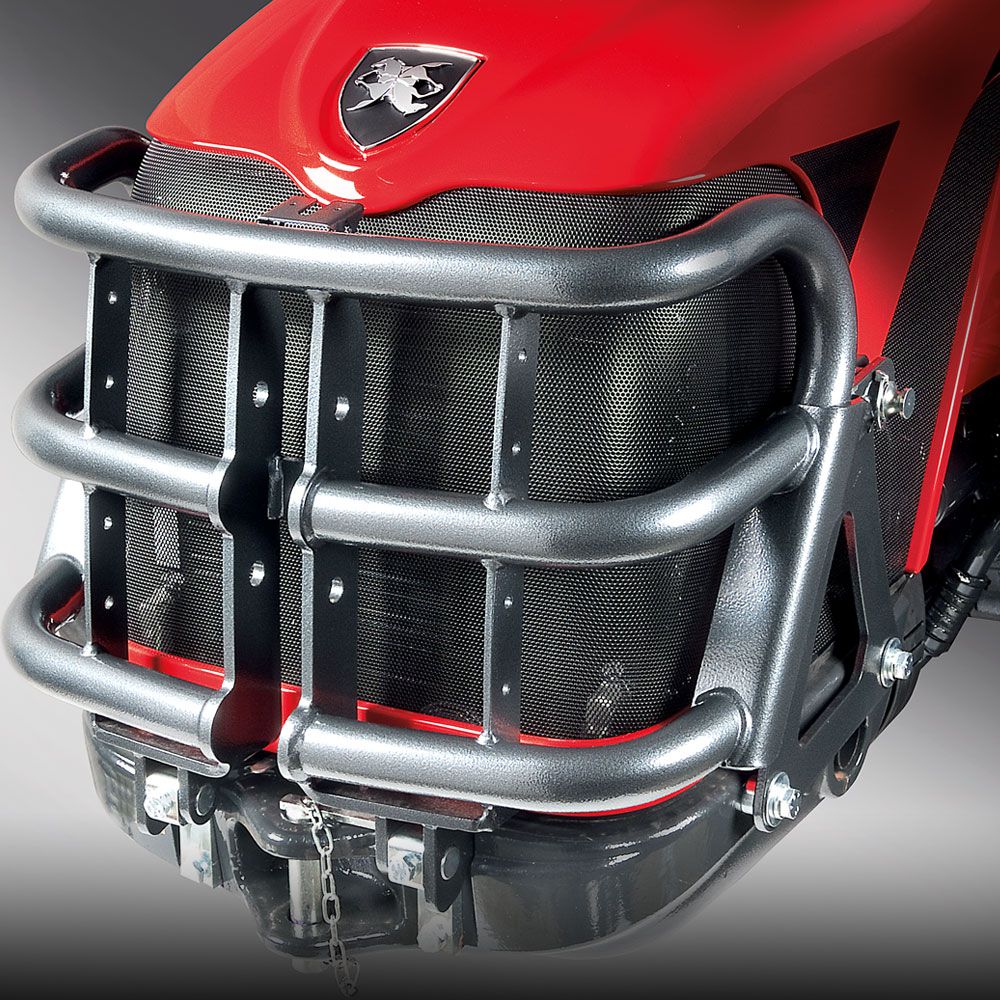

Bullbar
Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.
Optional
Air conditioner
The soundproof cab offers also an automatically controlled air conditioning system.
Optional
StarLight Cab
CLOSED CAB
StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or under foliage. StarLight’s compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver’s station grants acoustic comfort.
The main controls are in ergonomical position.
The ventilation system features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. Starlight offers also two rear and two front lights – all adjustable. Two adjustable rear view mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.
RGS™
RGS™ Rev-Guide System, the AC reversible driving system on a rotating turret, inverts the driving direction in just a few seconds to allow efficient operation with towed or frontal equipment. The operator simply turns the seat/steering wheel/dash/pedal assembly through 180° for an identical, but reverse, driving direction. On tractors with Joystick*, all the auxiliary controls remain conveniently positioned. The RGS™ system is an integral part of the tractor’s multifunctional character, simplifying use and improving the precision and quality of performance.
e-DRIVE TRANSMISSION
MAXIMUM EASE OF DRIVING
The new transmission houses the e-DRIVE system complete with synchronizer assembly, servo controls and range shift and reverse shuttle control unit.
e-DRIVE RANGE SHIFTING*
The driver can shift through the speed ranges comfortably and without effort at the simple touch of a button.
e-DRIVE REVERSE SHUTTLE*
The e-DRIVE reverse shuttle with control lever under the steering wheel comes in handy for operations involving back and forth movements in rapid succession, such as loading and unloading of material with forklifts, loaders or snow blades. The driver is assisted by an electronic system, which enables him to operate the tractor under the safest conditions without ever taking his hands off the steering wheel.
