Description
INTELLIGENT HYDROSTATICS – The Infinity Series is comprised of three hydrostatic tractors with 75 hp Kohler engines, characterized by a high level of operational flexibility and featuring advanced technology and functions derived from high end AC models. The hybrid mechanical-hydrostatic transmission offers infinite work speeds and, by eliminating the use of the clutch, makes work significantly less stressful for the operator. All the useful functions of the Infinity are digitalized: the operator can select the optimum configuration for any task simply by pressing the pushbutton controls. The instrument panel is designed to make operation easy and intuitive, and, among other features, offers the possibility to choose between 4 different driving modes for tractor speed and engine rpm control, to suit operator requirements.
ACTIO™
AC Full Chassis with Oscillation – cast iron full chassis hosting the tractor’s transmission. with a central articulated joint which allows a longitudinal oscillation up to 15°; this system allows the tractor to keep up with the soil’s sinuosity ensuring constant traction and grip.
RGS™

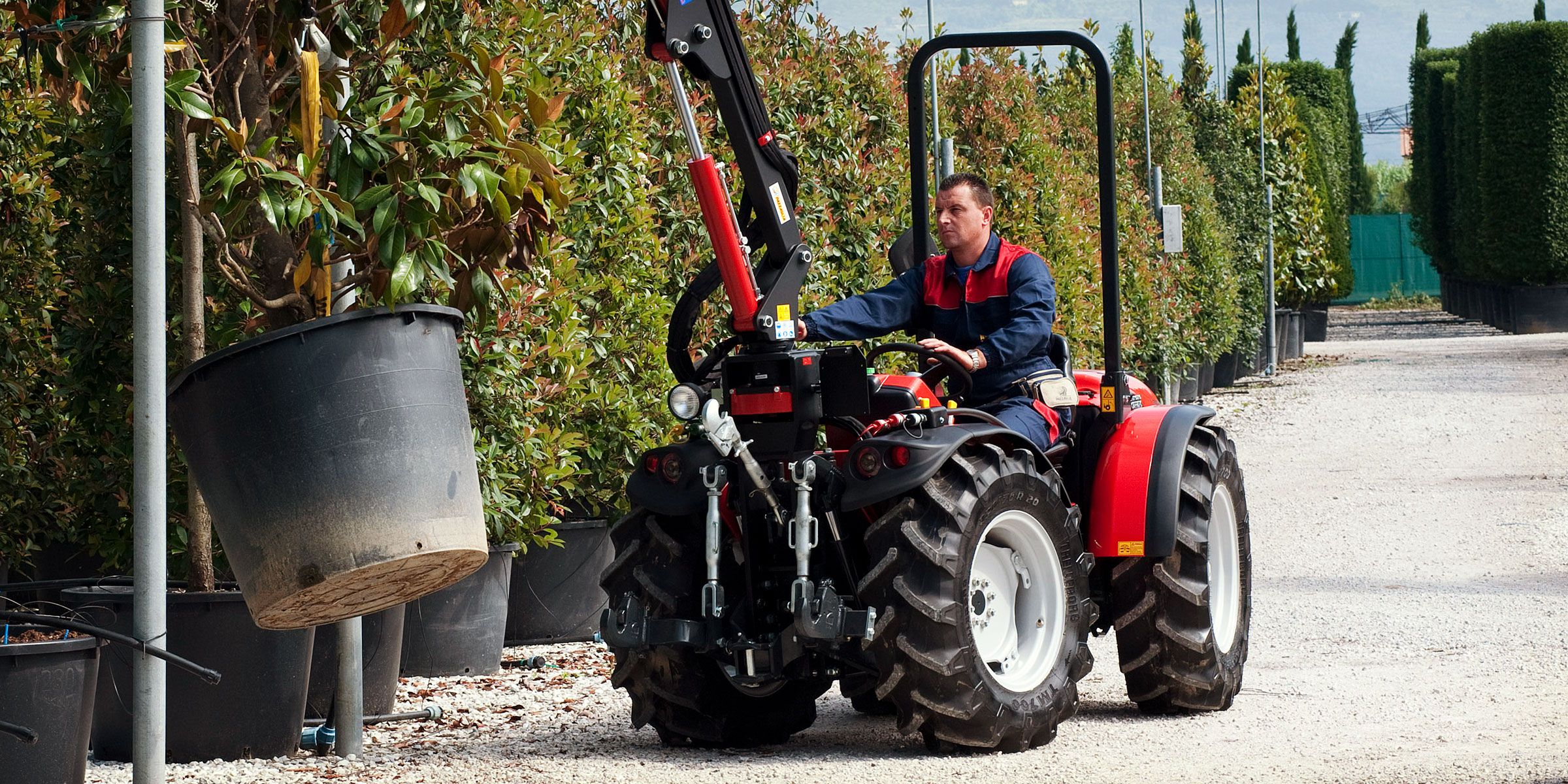

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
Articulated chassis
The wheelbase, the limited external width and the articulated frame make the tractor very agile between crop rows. The smooth and sensitive hydro guide steering wheel assures precise manoeuvring on steep slopes, in crossways movements, in bottlenecks, among crop rows and in car parks.
INFINITY Transmission
Hydrostatic continuous-variable transmission with 3 electronic shift-on-the-go speeds for each mechanical range, electro-hydraulic reverser; Mechanical selector of the 2 speed ranges (field and road); Continuous-variable speed in both forward and reverse from 0 to 40 km/h; “Eco” System: it maintains the maximum speed with a low diesel engine speed; “Automotive” device; Speed control with ESC (Electronic Speed Control) “RPM recall” System: it recalls the manually pre-set rpm or, when the Automotive function is activated, automatically control the engine speed from the minimum revs up to the pre-set revs; PTO 540/540e independent and ground speed with progressive electrohydraulic engagement; Start inhibit switch on shuttle reverser, PTO selector and clutch; Hydraulic front/rear or only rear differential lock; Electrohydraulic disengagement control for front drive wheels; Hydraulic clutch
UNIFLEX® Suspension
The UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points. Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.
Optional
GRAMMER seat
Air suspension with load display – reclining backrest – lumbar support.
Optional
EXG Extended Warranty
As a proof of its reliability, Antonio Carraro offers, in addition to its two-year standard warranty, an extension of warranty coverage up to three or four years, called EXG Maximum Protection.

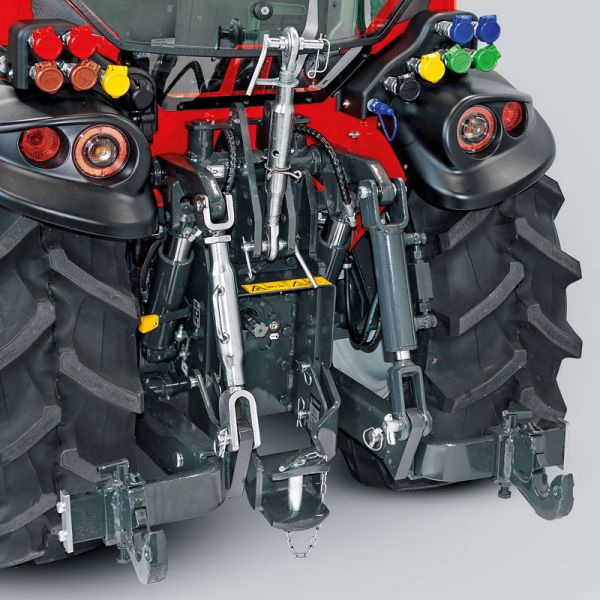

Vertical tie-rod and hydraulic thirdpoint
Optimizes the positioning and inclination of the equipment.
Optional
ACS – Auto-cleaning system
Reverse flow fan that assures the constant cleaning and efficiency of the radiator and of the front grille of the bonnet.
Optional
Front lift
Available on demand the front lifting system for the use frontal implements.
Optional

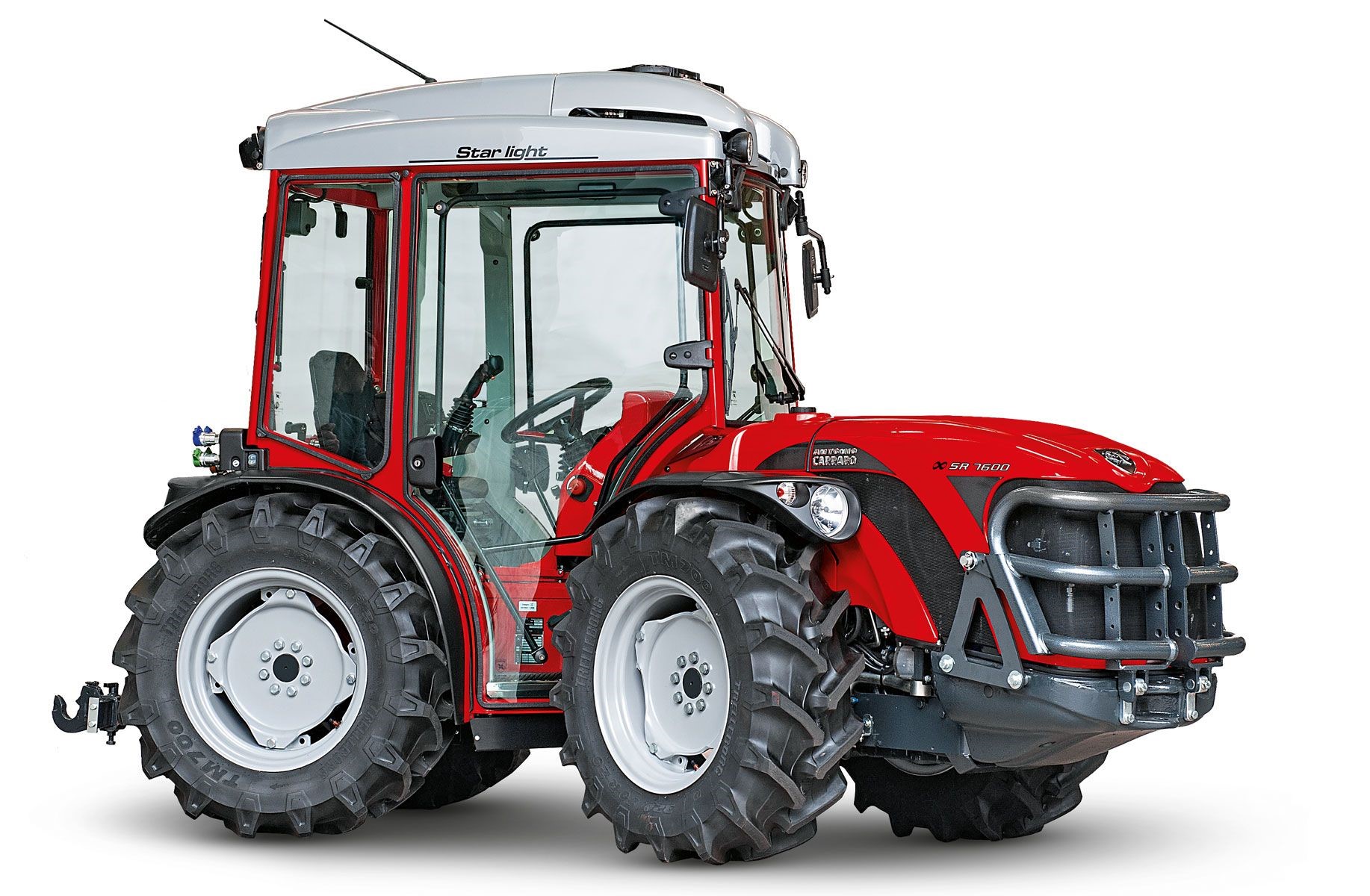

StarLight Cab
CLOSED CAB
StarLight is the Antonio Carraro closed cab assembled on Silent Block anti-vibrating device. It is equipped with front/rear windscreens, total-glass doors, double sunroof with sunscreens and portholes with view on wheels and devices, thanks to which it offers on-board brightness and total visibility.
The smooth design is functional to its performance through side-sloping rows or under foliage. StarLight’s compactness allows agility in the most narrow spaces with neither fruit nor flowers damage.
The soundproof clothing of the driver’s station grants acoustic comfort.
The main controls are in agronomical position.
The ventilation system features a rapid front windscreen defogging system. he incoming air is cleaned by a large filter, with an available activated carbon filter. The air-conditioning is achieved by a powerful system running on ecological coolant, which also refreshes the cabin air using a low rev motor. The heating system utilizes a powerful heat exchanger which is most exceptional even in the coldest weather. The roof can be opened to lift the electric fans for quick maintenance intervention. StarLight offers also two rear and two front lights – all adjustable. Two adjustable rear-view mirrors, foldable plate holder, glovebox, electrical setup and speakers for stereo system, are other details of the onboard comfort of Starlight. As every Antonio Carraro cab, Starlight is certified as anti-capsizing device.
Tractor for narrow vineyard with hydrostatic transmission
Transmission
Hydrostatic transmission with continual speed variation with 3 electric, shift-on-the-go ground speeds for each mechanical speed, electrohydraulic reverser; Mechanical selector with 2 speed range (work and dislocation); Steeples speed variator in both forward and reverse from 0 to 40 km/h; Functions: automatic transmission; “automotive” device; instant cruise control, memo cruise control, memo Rpm, dual memo cruise control; Intellifix, fast revers, limit rpm, drive mode (3 settings), anti-stall function on transmission, anti-stall function on PTO, diagnosis.
Tractor for narrow vineyard
PTO
540/540E rpm independent and ground speed with progressive electrohydraulic engagement, settable by cluster in Normal or Plus position
Narrow vineyard tractor with automatic cleaning system
ACS – Automatic Cleaning System
For applications where the front grille frequently gets blocked with debris (such as flail mowing or defoliation), the ACS* (Automatic Cleaning System) reversible flow fan is available.
Uniflex
The UNIFLEX* suspension allows for part of the weight of the equipment to be transferred to the tractor’s wheels. The reduction of specific ground pressure leads to numerous positive effects:
Lower compaction
Less resistance to pushing and pulling
Greater productivity
Lower fuel consumption
Greater grip
Greater stability
Damping
The UNIFLEX suspension with coaxial cylinders maximises its efficiency thanks to a reduced number of friction points. Its innovative concept allows the equipment to follow and adapt itself to the contours of the ground, keeping the ground pressure constant thus benefitting speed and work precision.
*optional
Narrow vineyard tractor with damping system
Damping (optional)
The Damping system, when activated, compensates for stresses transmitted from the mounted implements, thereby increasing comfort while protecting both driver and machine from possible harm.
