Description
PRODUCTIVITY
SPIDER 2SGS has an equal productivity as SPIDER ILD02 – it can be as productive as up to 15 brush cutters or 1 tractor with boom at substantially lower operating costs.
Due to absence of physically demanding work the daily productivity is much higher compared to the manually operated machines as no compulsory work breaks are needed.
Spider 2sgs and ild02 mowers
Spider 2sgs mower mulching blades under deck
QUALITY OF CUT
The unique mowing device is based on high-quality mulching due to which it is unnecessary to collect the grass. Cut grass is evenly spread to the grass roots and serves as a valuable source of nutrients for further growth.
The SPIDER 2SGS is equipped with a four-blade mowing mechanism that ensures perfect mowing and precise mulching. The blades are made of special alloys that guarantee strength and sufficient flexibility in case of accidental impact on a fixed obstacle.
In addition to classic blades, we also offer curved blades, which you will appreciate especially during frequent mowing of parks and gardens.
SPECIALLY DESIGNED FOR SOLAR PV
Solar photovoltaic panels consist of numerous solar photovoltaic cells that are wired together into a series circuit. This means that when the power output of a single cell is significantly reduced, the power output for the whole series is reduced to the level of current passing through the weakest cell.
Therefore, a small amount of shading can significantly reduce the performance. Of the entire solar photovoltaic panels system.
That’s why it’s vitally important to keep the grass maintained around these panels. Loss of generated energy equates to loss of income for the solar farm operator, so the maintenance of these areas cannot be underestimated.

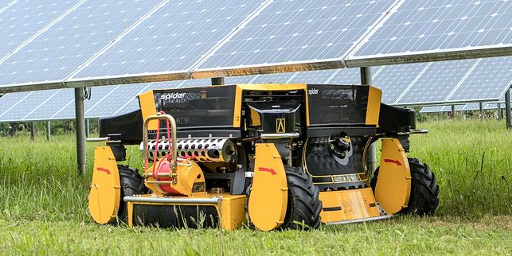

Spider 2SGS under solar PV panel
Spider 2sgs mower hydraulic winch close up
SAFETY FIRST
You’ll hardly be able to find a safer mower in the market. The remote control allows the operator to stay away from the working area of the mower, away from noise, fumes and vibrations.
Safety can be further enhanced by using the hydraulic winch, which stabilises the machine in extreme slopes. SPIDER 2SGS works safely in the toughest conditions.
DRIVE SYSTEM
4-cycle Kawasaki engine provides optimum productivity and maximum payback even in the toughest terrain due to dual element air filter and powerful lubrication system.
Performance: 15.4kW (21hp) / 3600 rpm
Oil Tank: 2.0 L
Cylinders: 2
Displacement: 726cm3
Spider mower 2sgs logo
Spider mower remote control
REMOTE CONTROL
The remote control provides comfort, safety and precise control. The range of the remote control is 100m.
The following functions can be controlled remotely:
starting and stopping the engine
setting the speed mode (turtle/rabbit)
turning on and off the mowing device
adjusting the cutting height
changing the speed and direction
wheel rotation (360°)
skid steering
activation of stabilizing winch
emergency shutdown of the entire system
DRIVE UNIT
The hydrostatic drive system ensures fluent speed regulation while preserving optimum management of the combustion engine.
Sensitive speed regulation and steering result in precise control of the mower, excellent operation efficiency and high safety.

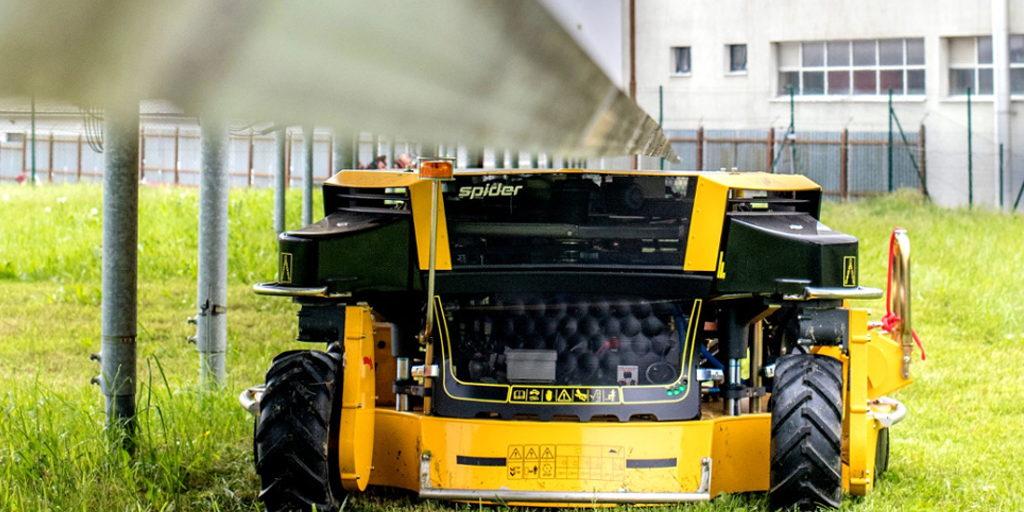

Spider 2SGS mower underneath solar pv panel

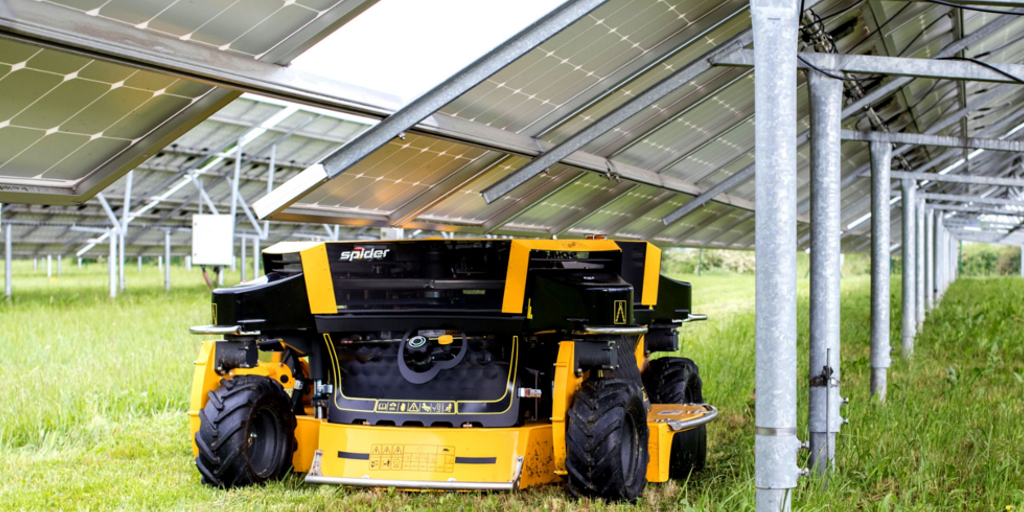

Spider 2sgs underneath solar pv panel
DANCE STEP
The patented drive system “Dance Step” together with constant 4-wheel drive ensure fantastic manoeuvrability in all terrains, great climbing ability and gentle treatment of grass even in wet or soft terrain.
SKID STEERING
SPIDER 2SGS is equipped with the skid steering option.
Steering system allows the rotation of the mower around its vertical axis and significantly simplifies manipulation.
Spider 2SGS underneath solar panel
TRANSPORT
To transport a Spider 2SGS mower we can offer a special trailer containing integrated pull-out ramps and a safety system securing the mower from any movement. It can be easily and quickly transported in a wide range of vans and alternative trailers too.
Spider 2SGS
Spider 2SGS: Specifications
Drive Unit
Engine Type Kawasaki FS691 V
Performance 24hp – 15.4 kW
Displacement 726 ccm
Ignition Electronic
Fuel Tank Capacity 16 Litres
Fuel Type Unleaded Petrol
Drive System
Gear Hydrostatic
Oil Tank 9 Litres
Speed 0-8 kmh
Steering 360 degrees, 4-wheels
Wheels 16 x 6.50″
Cutting System
Cutting Width 123cm
Cutting Height 9-14cm / 7-12cm
Clutch Electromagnetic
Performance & Consumption
Performance up to 7000 m2/h
Fuel Consumption 3.5-5.5 Litres per hour
Climbing Ability 41 degrees – 55 degrees with hydraulic winch
Dimensions
Overall Length x Width 164cm x 143cm
Overall Height 82.5cm
Dry Weight 367kg / 809lbs
Spider 2SGS Accessories
Low Height of Cut Range Kit
Bespoke Spider Trailer
