Description
It can be equipped with the latest generation Air pressurised cab, also available in a Category 4 certified version offering total protection against harmful dust, gas and vapors.
Unlike a conventional crawler, the Mach 4 tracked tractor does not have to be transported on another vehicle from one work site to another as it is homologated for use on the road at speeds up to 40 km/h.
The R Series represents the top of the AC range for performance, technological content and on-board equipment, offering a host of useful functions as standard.
Thanks to CAN-bus technology, which allows instantaneous dialogue between the tractor’s various electronic control units with a minimum number of connections, the operator can enjoy the benefits of electronic engine control, with all the controls conveniently located on the instrument panel, including the work speed memories and acceleration ramps. All the models are equipped with the formidable 98 hp, 4-cylinder Kubota engine with electronic Common Rail injection. The slightly longer wheelbase ensures optimal distribution of the tractor’s weight.
All the models in the range can be equipped on request with the new Air cab (except for the TGF 10900 R, which is fitted with the Protector 100 cab) affording advanced technology and comfort, with a spacious operator position, notwithstanding the extremely compact dimensions which allow easy manoeuvring in tight spaces and between crops. The cab is pressurized and available also in a Category 4 certified version, which offers the operator total protection from inhalation of harmful dust, gas and vapors.
ACTIO™, This Full Chassis with Oscillation is comprised of a solid cast-iron chassis fixed to the axles and housing the tractor transmission. It features a central joint with a longitudinal oscillation of up to 15°. The two oscillating ends follow the contour of the terrain independently, thus assuring stability and traction at all times. The constant adherence of the tires to the ground allows engine power to be entirely transferred to the ground, thus increasing performance and safety.
The ACTIO™ chassis requires a “projecting” engine configuration in order to assure a low center of gravity and an equal division of the weight of the tractor: 60% on the front axle; 40% on the rear axle. This is an ideal balance with implements attached as it distributes 50% of the weight on each axle.

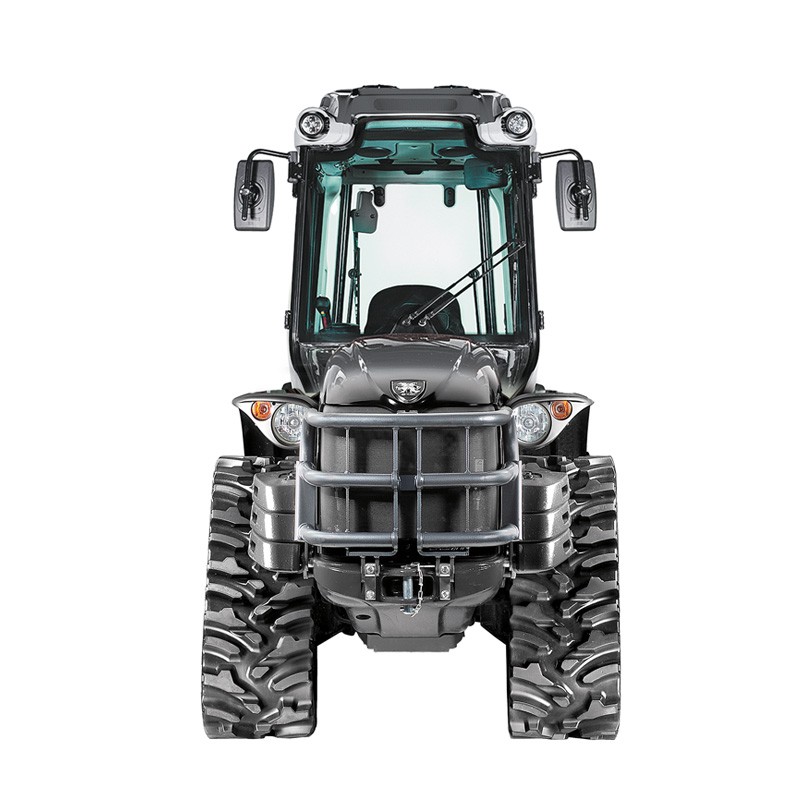

RGS™ MACH 4 R

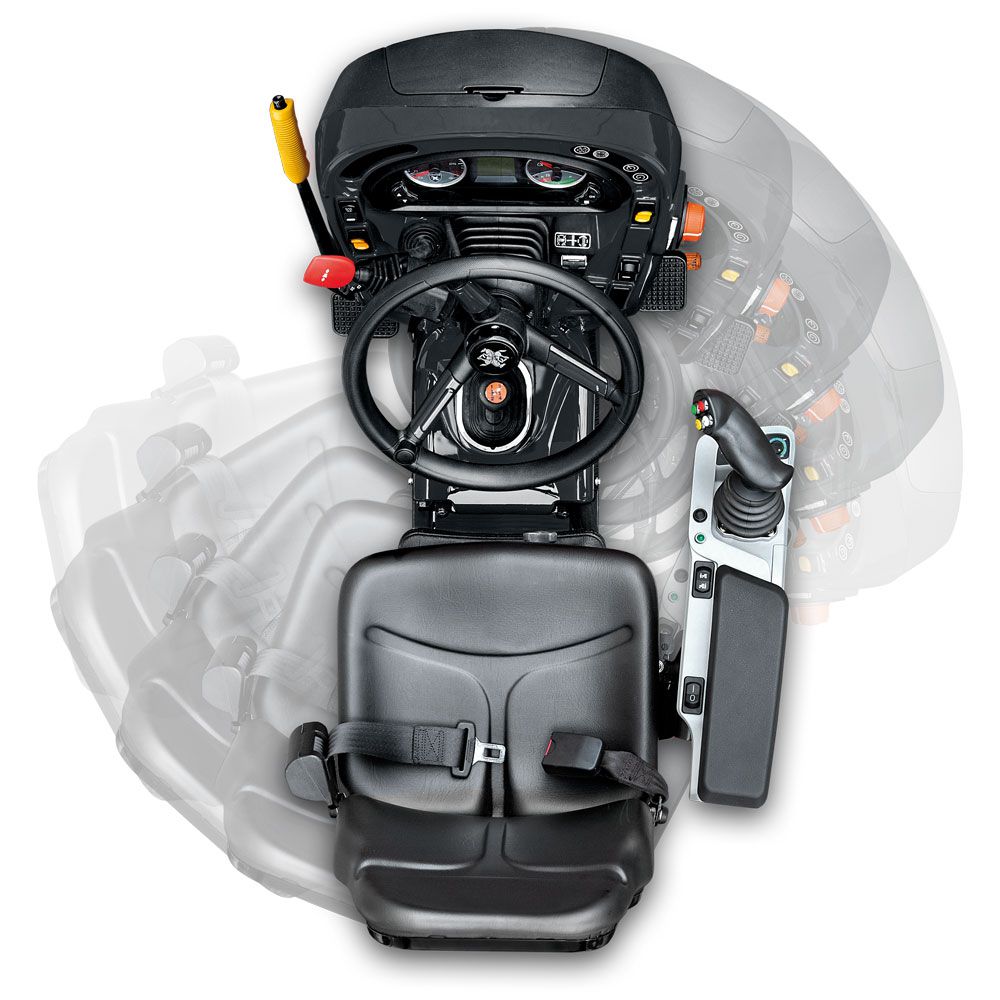

RGS™ Rev-Guide System, is the AC reversible driving system on a rotating turret which inverts the driving direction in just a few seconds in order to work efficiently with towed or frontal equipment. Simply turn the seat/steering wheel/dash/pedal assembly 180° for an identical, but reverse, driving direction.
DAMPING
| Stability at all times
The Damping system, which is fitted as standard equipment and, when activated, compensates for stresses transmitted from the mounted implements, thereby increasing comfort while protecting both driver and machine from possible harm.

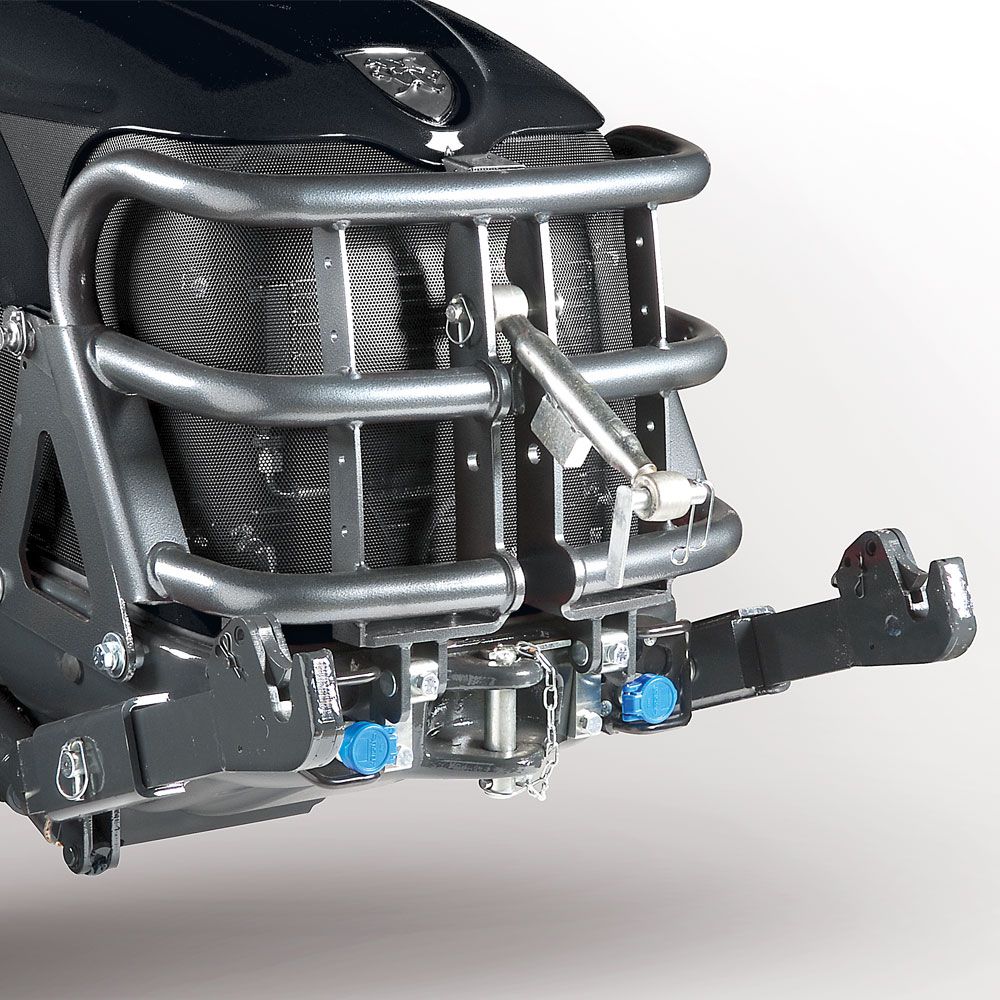

Front lift
Available on demand the front lifting system for the use frontal implements.
Headlight grilles
Protecting the light assemblies, they also make the bodywork look more appealing
Optional

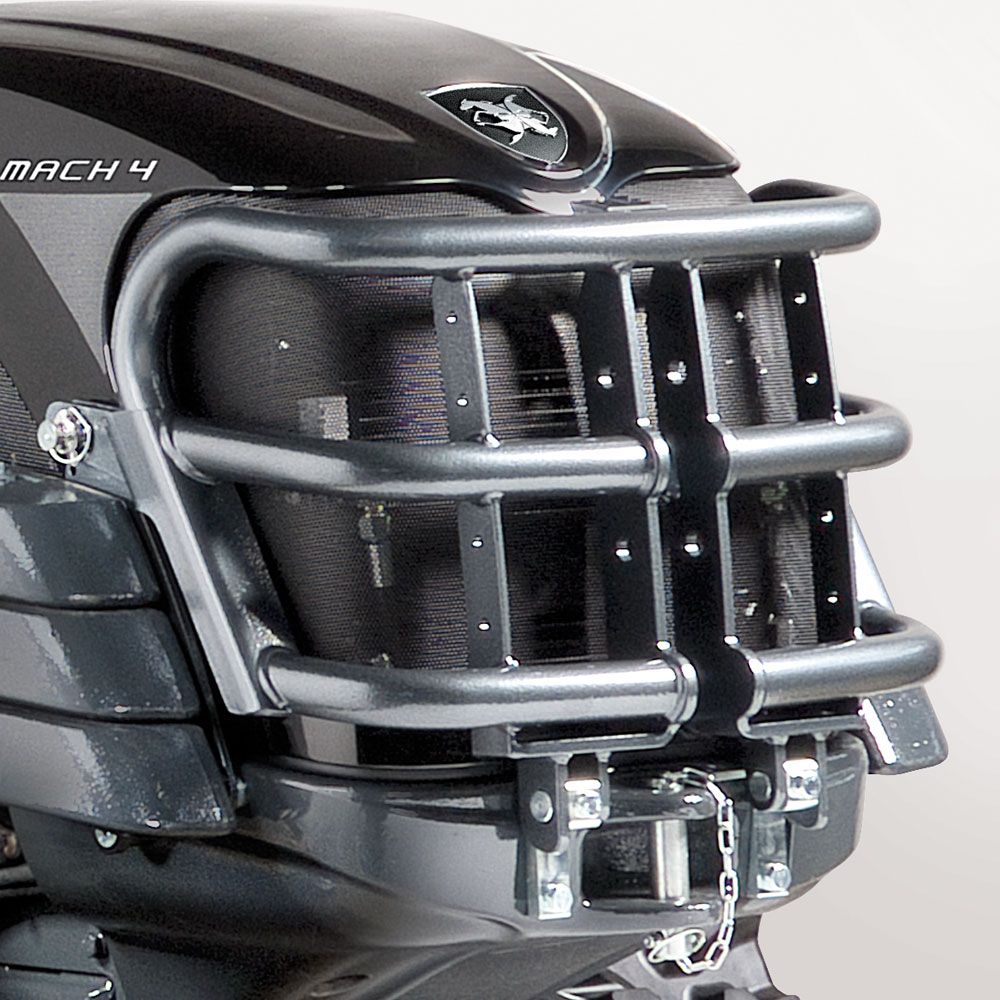

Bullbar – Mach
Tubular steel guard protecting the bodywork; integrates the third-point for the front lift.
Vertical tie-rod and hydraulic thirdpoint
Optimizes the positioning and inclination of the equipment.
ACS – Auto-cleaning system | Mach 4 R
Reverse flow fan that assures the constant cleaning and efficienc of the radiator and of the front grille of the bonnet.
Optional
Ballasts
Front ballast (132 kg) – Perfectly integrated into the bodywork of the tractor; it does not alter the wheelbase or dimensions of the tractor.
Rear ballast (160 kg)
ROAD TRANSIT CERTIFICATION – With its four rubber tracks, Mach 4 R is certified for road transit up to 40 km/h – 25mph.
INVINCIBLE – Mach 4 R tracked tractor is designed for extreme working conditions, where other tractors cannot operate: steep slopes, narrow spaces, unstable terrains (muddy, flooded, loose, rough soil).
ARTICULATED – ACTIO™ chassis: allows ultra-compact size and uncomparable manoeuvrability.
REVERSIBLE – The rotating dashboard Rev-Guide system allows the inversion of the driving direction in few seconds in order to use devices on both front and back sides.
GRACEFUL – The perfect weight distribution on the rubber tracks has the effect of minimizing the soil compaction, which is less than a human footprint.
ECO-FRIENDLY – New Kubota Stage 3B, 98 hp. More efficiency, less consumption and emissions, more respect for the environment. Eco-Mode – optional for the reduction of rpm once speeds of 40 km/h have been reached.
COMPACT –The 3B engine, larger due to the new DPA filters, does not influence the tracked tractor’s size, which remains among the most compact of its category.

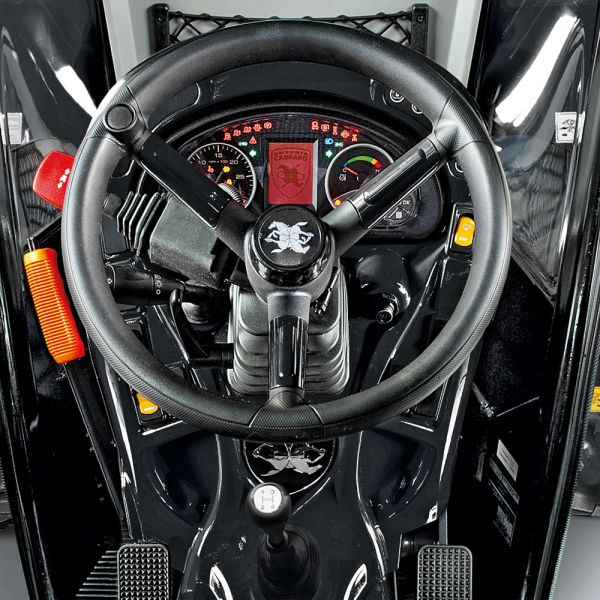

COMFORTABLE –Antonio Carraro always guarantees the most comfortable driving station of its category. On board of Mach 4 R is also available a new joystick, more ergonomic, with more functions and more capacity (up to 51 lt).
MANEUVERABLE – In addition to compactness, the damping system is standard. The combination between it and the rubber tracks – which already absorb the pitch extraordinarily – Mach 4 R offers an incomparable driving comfort.
SAFE – Even safer, Mach 4 R can be ordered with the new AIR cabin, with class 4 pressurization and ROPS/FOPS certification.
Antonio Carraro, the world’s most beautiful tractor – Introducing the top range of specialized, compact tractors for vineyards, orchards, haymaking. Designed to work on impossible grounds, on mountains and hills, on slopes and through mud. The safest, the most comfortable, the most beautiful.
