Description
This is our smallest size range of professional, Tractor mounted sweepers with hydraulic drive (for ride on lawn mowers.) The FKDR/HYD linkage kit must be purchased in order to fit these sweepers. Hydraulics are supplied with the kit and are powered by the mower engine via a belt. The FKDR Kit is supplied with an integrated control panel to operate the lift/lower mechanism, angling and engage power to the implement. There are 2 levers. One lever controls the angling left and right. The other lever lifts and lowers the linkage. There is a float position on this lever, when engaged — power will be delivered to the sweeper. The FKDR range sport the same robust construction techniques as our pedestrian sweepers, with CNC folded and welded, heavy gauge steel.
An inboard variable speed hydraulic drive motor, with constant tension duplex drive chain allows greater power to the brush and negates chain slippage. The pendulum suspension system protects the sweeper and carrier from damage over rough ground and allows the sweeper to follow contours. Our Ø 37cm, five row combi brush moves large, heavy debris with ease. Sweeping height is adjusted by heavy duty gauge wheels — each wheel is adjusted individually for precise positioning of the brush. Suitable for fitting to a wide range of ride on mowers.
Diameter 37cm
Attachments

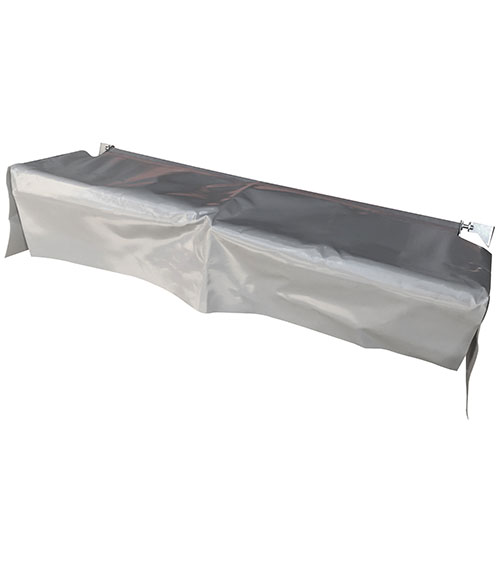

GUSPL 125 – Front Brush Guard 125cm – for 37cm sweepers
Front bush guard
Front brush guard Sometimes it is necessary to move material without collecting it. For example; when windrowing a large volume of heavy soil or snow. In this case we need to control the debris, to prevent excessive spray. The front brush guard does exactly that – allowing the material to be contained and dropped directly in front of the sweeper.
Collector Box – 125cm working width
The sweeper height is maintained by its rear, heavy gauge wheels and the collector box is mounted to the sweeper chassis allowing it to maintain the position relative to the brush. Hydraulic cylinders allow the collector to be opened and closed without leaving the cab, so you can dump the waste easily. The collector box covers the full length of the sweeper and is built to contain a large volume of debris.
The collector box has several manually selectable height settings so that the height can be adjusted as the brush wears.
This allows proper material collection for the whole life of the brush.
A built in debris shield closes the gap between the sweeper chassis and the collector box preventing material from being flung through the gap. The collector is made from hard PV Plastic.
Parking supports for EFKM – sweeping roller diameter 37 cm – AST 37 LR
A sweeper has wheels on the rear, which support it on the tractor, but when the sweeper is taken off the tractor the weight will squash the brush. Our garage stands support the front of the sweeper with wheels that allow easy moving of the unit around the work-shop or storage area.
This also makes mounting and de-mounting the sweeper from the tractor an easier
Side Gulley Brush – 40cm – Belt Drive- 32cm, 37cm Sweepers – ASM 403237
Keeping the edges clean and crisp really makes an impact. The powerful 40cm gulley brushes can move heavy build up of debris from the kerb edges by sweeping material in to the path of the main brush and collector. The sweepers’ integrated hydraulic system provides services for right hand mounting on the sweeper or a lower cost belt driven version. The rotational speed of the hydraulic brushes is fully controllable.
The height and angle and fore and aft positions of the gulley brush can be adjusted to achieve maximum performance and no tools are required.
Spring loaded collision protection allows the operator a degree of latitude when sweeping against wall and gullies.
Gulley brush – 40 cm diameter – hydraulic drive – ASH 403237
Gully brush – Mechanical or Hydraulic – 40cm diameter
Keeping the edges clean and crisp really makes an impact.
The powerful 40cm gulley brushes can move heavy build up of debris from the kerb edges by sweeping material in to the path of the main brush and collector.
The sweepers’ integrated hydraulic system provides services for right hand mounting on the sweeper or a lower cost belt driven version. The rotational speed of the hydraulic brushes is fully controllable.
The height and angle and fore and aft positions of the gulley brush can be adjusted to achieve maximum performance and no tools are required. Spring loaded collision protection allows the operator a degree of latitude when sweeping against wall and gullies.
