Description

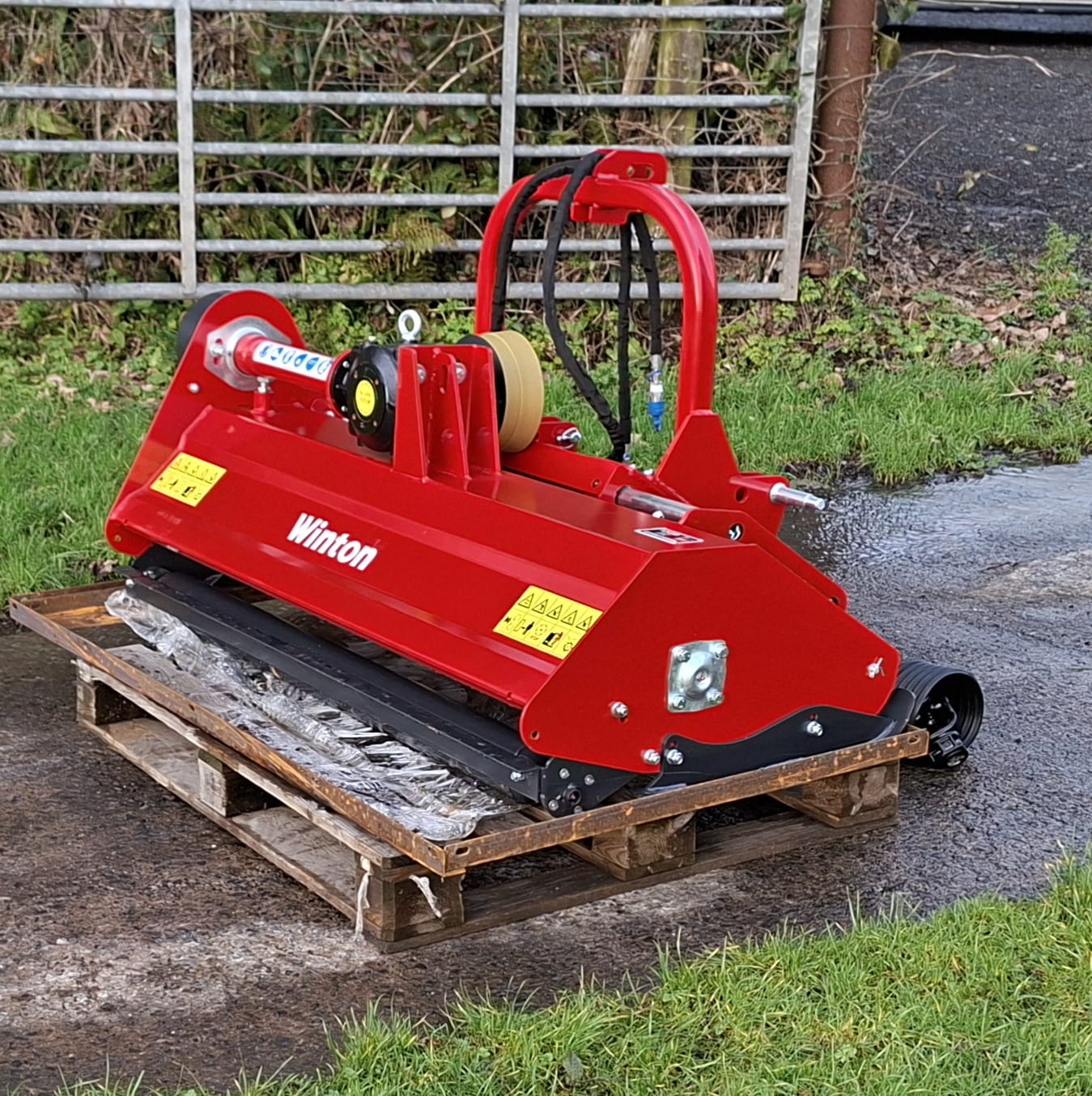

The WHF145 Winton 1.45m Hydraulic Side-Shift Flail Mower is perfect for tackling overgrown areas. This mower is fitted with hydraulic side shift A-frame as standard for added manoeuvrability. Therefore, it provides better access to hard to reach areas. This requires 1 double acting spool on the tractor for the 2 hoses which then operate the horizontal movement. The offset function means the flail is ideal for cutting up to hedgerows, or fencing around any trees.
This mower is fitted with heavier hammer flails and gearbox for tougher grass and weed control. Therefore, this flail can be used when grass and weeds are at a more manageable length to give a fine grass finish for lawns or sports fields when used regularly. Several hammer style blades are mounted to the cylindrical rotor in a spiral layout. This action is most efficient and creates finer cuttings. It is also better suited to uneven ground types than conventional rotary and topper mowers. The mower is also belt driven, there are 3 drive belts which give power to the blade rotor shaft.
This machine benefits from an adjustable rear roller, this can then be adjusted up or down along with the tractor top link arm to change finish and cutting height. The rear roller helps to avoid blade scalping on uneven areas. The mower also benefits from 2 height adjustable skids to adjust the cutting height. It also helps to avoid the mower scalping and leave an even cut when mowing.
The Winton 1.45m Hydraulic Side-Shift Flail Mower can be attached to the 3 point linkage of a range of small or compact tractors.
Specifications
| Weight | 322 kg |
|---|---|
| Working Width (cm) | 145 |
| Tractor Range (HP) | 25-50 |
| Linkage Type | Cat 1 |
| Lower Linkage Width (cm) | 77-92 |
| Cutting Range (cm) | 3-8 |
| Power | PTO |
| Number of Blades | 24 |
Features
- Hydraulic offset A-frame as standard
- Robust heavy-duty gearbox
- Spirally arranged hammer blades for an efficient cut
- Adjustable cutting-height range of 3-8cm
- Adjustable positioning for skids and roller
- Heavy hammer blades
