Blitz 120

Versatile and multi-purpose, Yagmur two wheel tractors are designed for tough conditions.

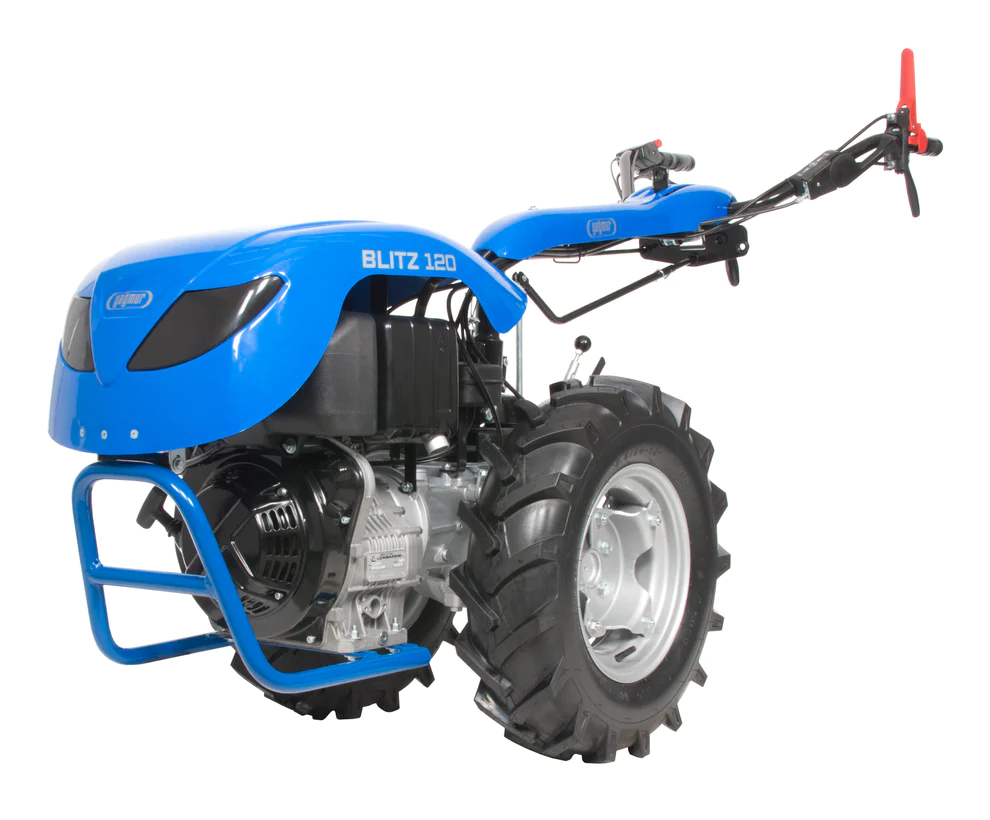

BLITZ 120

The Blitz 120 stands out in its class with its many distinctive features such as unique REV system and double PTO speed. REV system ensures full capacity for bi-directional use and safety.

With 4 forward and 1 reverse gear in both directions.
Independent brakes on each wheel can be used as steering to increase manoeuvrability or parking brake.
Ergonomics have been maximised by carefully positioning all the controls in an area that the professional user can easily access.
With a mechanically lockable differential, and Yagmur’s anti-vibration handlebars, the Blitz 120 is designed for working all day long.
Please see specification table below for different engine options and prices.

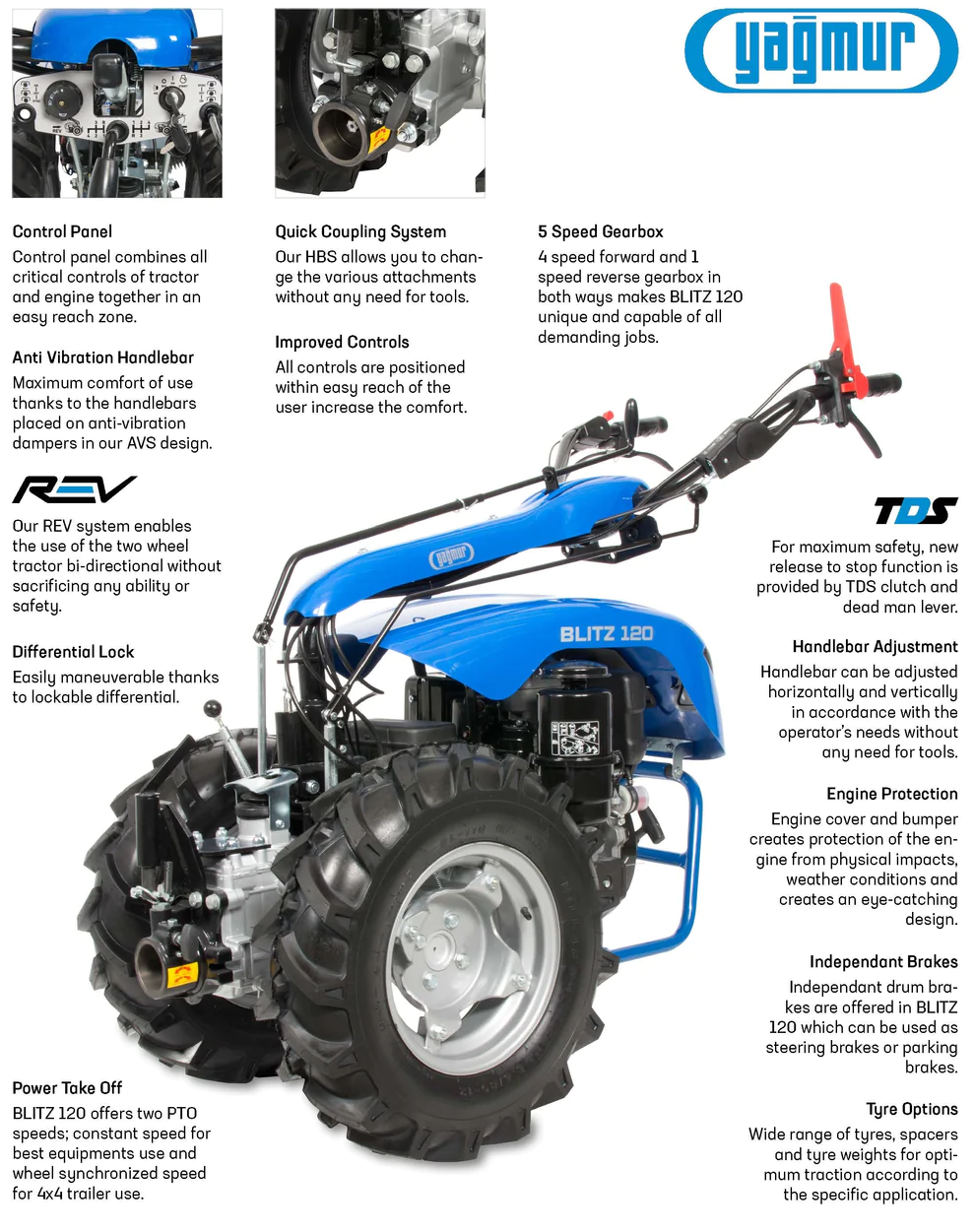

Bi-directional use, reversible with shuttle system.
4 forward and 1 reverse gears in both directions.
2 speed PTO.
Differential lock.

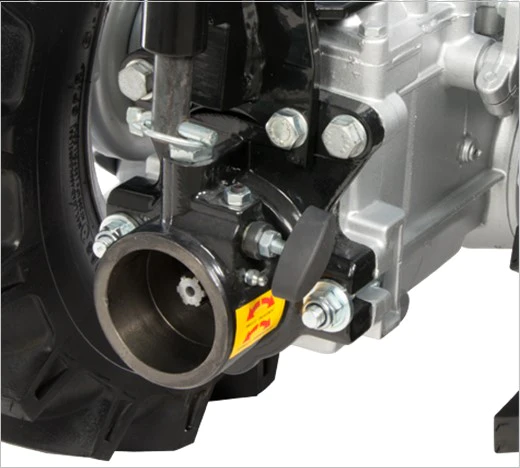

Quick release coupling allows you to change attachments without any need for tools.
180 degree rotating handlebars changed in seconds for front and rear implements.

Adjustable handlebars.
Low level of vibration with AVS (anti vibration) handlebar system.

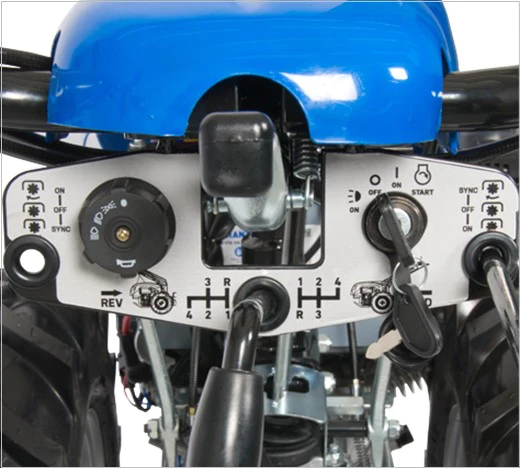

Easy to use control panel combines all critical controls of the tractor and engine together in one easy-to-reach zone.
Dead stop allows easy and safe control of tractor in confined area.
Removable toolbox.
Drawbar included.

Yagmur BLITZ 120 – A professional machine for the toughest of conditions.

Ask a question
Add to Wishlist
Add to wishlist
Categories: , , ,
Description

Description

Specifications:

YAGMUR BLITZ 120
Bi-Directional Use Reversible with shuttle system (REV)
Gearbox Spur and bevel gears in oil bath
Number of Speeds 4 Forward / 1 Reverse (in both directions)
Speed (km/h) 1 (1.2) / 2 (2.26) / 3 (5.08) / 4 (15) / R (1.8)
Speed (REV) (km/h) 1 (1.8) / 2 (3.3) / 3 (7.4) / 4 (21.4) / R (2.63)
Clutch Dry type conic (TDS)
Clutch Control Mechanical deadman lever
Differential Lock and unlock control lever
PTO Speed 1) Constant speed (675 rpm or 985 rpm in REV)
2) 5 Synchronised speed (for 4×4 trailer use)
PTO Dimension 16 UNI 221
Equipment Connection Quick coupling system without any tools (HBS)
Brakes Independent drum brakes on each wheel
(can be used as steering or parking brakes)
Handlebar Horizontally, vertically and 180 degrees adjustable
Drawbar Offered as standard
Safety In conformity with CE standards
Wheels 6.5/80-12 Adjustable
Weight 175 kg

Engine Options & Prices Blitz 120 with Honda GX390, 13hp petrol engine, pull start
or
Blitz 120 with Honda GX390, 13 hp petrol engine, electric start
or
Blitz 120 with Antor 3LD510, 12 hp diesel engine, electric start

Implements for Blitz 120 – current stock

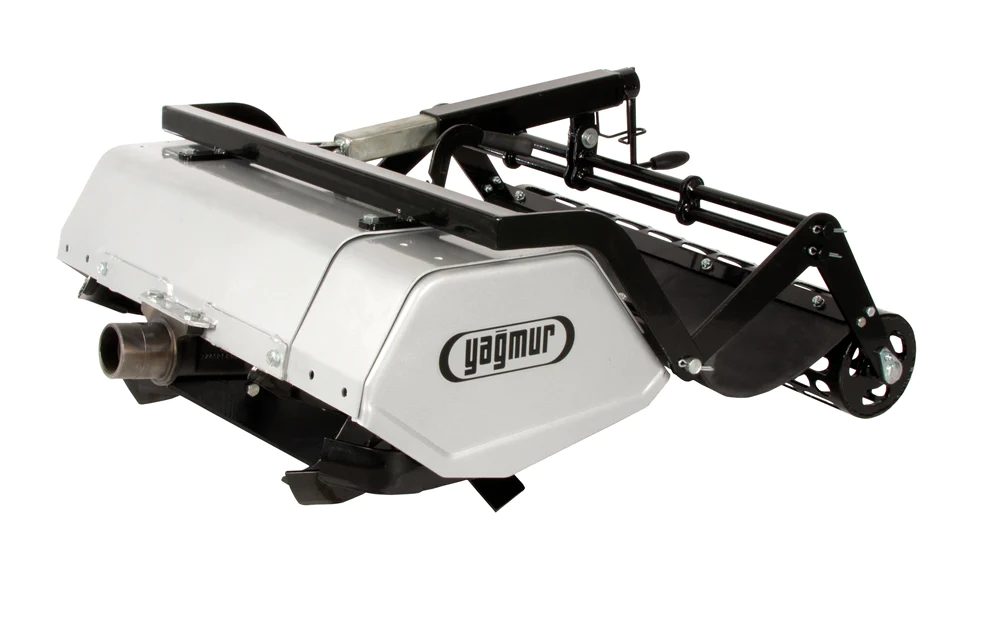

75 cm Adjustable Rotovator
Crumble Roller Kit for 75 cm Rotovator

83 cm Adjustable Rotovator
Crumble Roller Kit for 83 cm Rotovator

110 cm Cutter Bar

130 cm Cutter Bar

Single Furrow Reversible Plough

When you purchase a Yagmur 2-wheel tractor from CTM you will be guaranteed the quality and reliability of Yagmur’s undoubtable reputation as one of the world’s leading specialist two wheel tractor manufacturers. This, combined with CTM’s wealth of experience, will ensure that your tractor and implements are properly matched and weighted to assure you of optimal performance for the tasks you perform.
